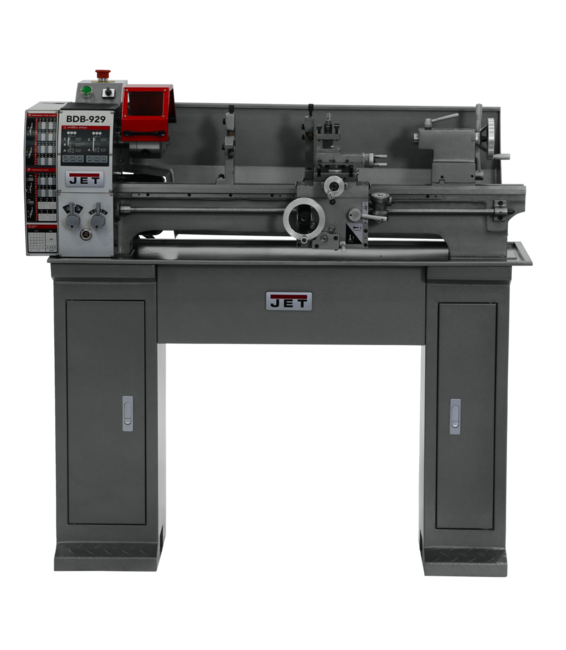

BDB-929 BELT DRIVE LATHE WITH STAND

Name: BDB-929 BELT DRIVE LATHE WITH STAND
Brand: Jet
SKU: 321372K
Price: 4269.00 USD
Availability: InStock

Lathes

<< Back

The BDB-929 benchtop lathe is the essential step to improving your shops capabilities. Engineered with precision induction hardened ground bed-ways and precision tapered roller bearings the BDB-929 delivers the smooth operation and rigidity needed to craft professional pieces.

BDB-929 Belt Drive Bench lathe with stand

Features & Benefits

Backlash adjustments provided throughout the carriage
Emergency stop within easy reach of the Operator
Full Length Splash Guard
Induction hardened and ground bedway
Power longitudinal feed allows threading and reverse threading
Quick change gearbox provides wide range of inch and metric threads
Reversing switch for added versatility
Safety on/off switch
Spindle supported by precision tapered roller bearings
Standard Accessories

SAP EAN Number Code (UPC)	731325733891
Model Number	BDB-929
SAP Base Unit of Measure	EA
SAP Commodity Code	8458.19.0020
SAP Country of Origin	China
SAP Delivery Plant	JNA
SAP Gross Weight	402
SAP Weight Unit	KG
SAP Net weight	356
SAP Weight Unit	KG
SAP Transportation Group	Parcel
BOM Products	321377,321379
Carriage Travel (In.)	26.5
Compound Slide Travel (In.)	1-7/8
End User Sellable	No
Item Display Order	199.0000
Max Tool Size (In.)	1/2
Motor (HP)	3/4 HP, 115V, 1PH
Number of Inch Threads	27.0000
Number of Longitudinal and Cross Feed Rates	60
Number of Metric Threads	12.0000
Number of Spindle Speeds	6
Overall Dimensions (L x W x H) (In.)	51x22x20
Prop 65	Cancer and Reproductive Harm
Range of Inch Threads (TPI)	8 - 56
Range of Longitudinal Feeds (IPR)	0.0006-0.0368
Range of Metric Threads	0.5 - 3.5
Range of Spindle Speeds (RPM)	130-2000
Spindle Bore (In.)	3/4
Spindle Mount (English United States, Ecommerce)	1-1/2 x 8TPI
Spindle Taper with Sleeve (English United States, Ecommerce)	MT-3
Steady Rest Capacity (In.)	1-3/4
Swing Over Bed (In.)	8-3/4
Swing Over Cross Slide (In.)	5
Tailstock Spindle Travel (In.)	1-9/16
Taper in Tailstock Spindle	MT-2
Weight (Lbs.)	287.0000
Weight (Lbs.) (Unit)	Pound
Width of Bed (In.)	4-1/2
