BDB1340A LATHE W/ CBS-1340A STAND

Name: BDB1340A LATHE W/ CBS-1340A STAND
Brand: Jet
SKU: 321102AK
Price: 9979.00 USD
Availability: InStock

Lathes

<< Back

JET Belt Drive Bench Lathes feature an enclosed gearbox with helical cut gears for noise reduction and smooth operation. The full-length splash guard on all sizes prevents hot chips and fluid from contaminating the work area and the quick-change gearbox allows for fast and easy gear changes for metric threading. The optional bench shown in the image is compatible with JET Lathes and is available for purchase. Each JET Lathe comes loaded with features youve come to expect, all backed by the industry leading JET Two Year Warranty.

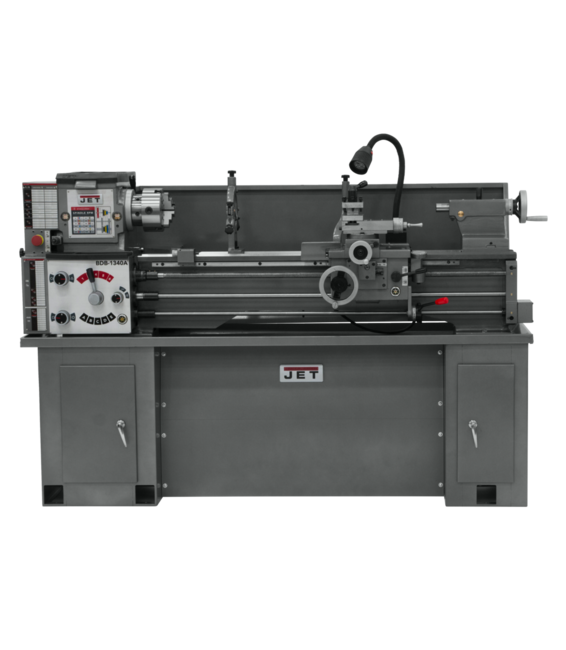

BDB-1340A With CBS-1340A Stand

Features & Benefits

6" 3-jaw direct mount scroll chuck with top reversing jaws
Automatic feeding and threading are fully interlocked
Carriage mounted spindle control lever
Centers and headstock center sleeves
Feed selectors travel in grooved ways
Independent lead screw and feed rod
Low voltage motor controls
Spindle is supported by precision tapered roller bearings
Tailstock may be offset for turning taper
Tolerance test certificate included

SAP EAN Number Code (UPC)	662755503337
Model Number	BDB-1340A
SAP Base Unit of Measure	EA
SAP Commodity Code	8458.19.0020
SAP Country of Origin	China
Warranty	2 Year
SAP Delivery Plant	JNA
SAP Length	71
SAP Unit of Dimension	IN
SAP Height	45
SAP Unit of Dimension	IN
SAP Width	32
SAP Unit of Dimension	IN
SAP Gross Weight	1195
SAP Weight Unit	LBS
SAP Net weight	1055
SAP Weight Unit	LBS
SAP Transportation Group	LTL-Dock Del Only
Accessories Products	321431,321442,321515A,650014,650015,650016,650017,650018,650295,650300,650305,660200
Carriage Travel (In.)	35
Compound Slide Travel (In.)	2-11/16
Drive	Belt
End User Sellable	No
Item Display Order	188.0000
Length of Gap (In.)	8
Max Tool Size (In.)	5/8 x 5/8
Motor (HP)	2 HP, 230V, 1Ph
Number of Inch Threads	38.0000
Number of Longitudinal and Cross Feed Rates	38
Number of Metric Threads	23.0000
Number of Spindle Speeds	12
Overall Dimensions (L x W x H) (In.)	71 x 32 x 45
Prop 65	Cancer and Reproductive Harm
Range of Cross Feeds (IPR)	0.0006-0.013
Range of Inch Threads (TPI)	3-1/2 - 80
Range of Longitudinal Feeds (IPR)	0.0018-0.0374
Range of Metric Threads	0.45-10
Range of Spindle Speeds (RPM)	60 - 1,240
Size (English United States, Ecommerce)	13 x 40
Spindle Bore (In.)	1-3/8
Spindle Mount (English United States, Ecommerce)	D1-4
Spindle Taper with Sleeve (English United States, Ecommerce)	MT-5 (MT-3)
Steady Rest Capacity (In.)	2-5-8
Style (Type)	Bench
Swing Over Bed (In.)	13
Swing Over Cross Slide (In.)	7-25/32
Swing Through Gap (In.)	18-3/4
Tailstock Spindle Travel (In.)	3-3/4
Taper in Tailstock Spindle	MT-3
Weight (Lbs.)	1175.0000
Weight (Lbs.) (Unit)	Pound
Width of Bed (In.)	7-3/8

Part #: 321102AK

Price: $9,979.00

Quantity:
