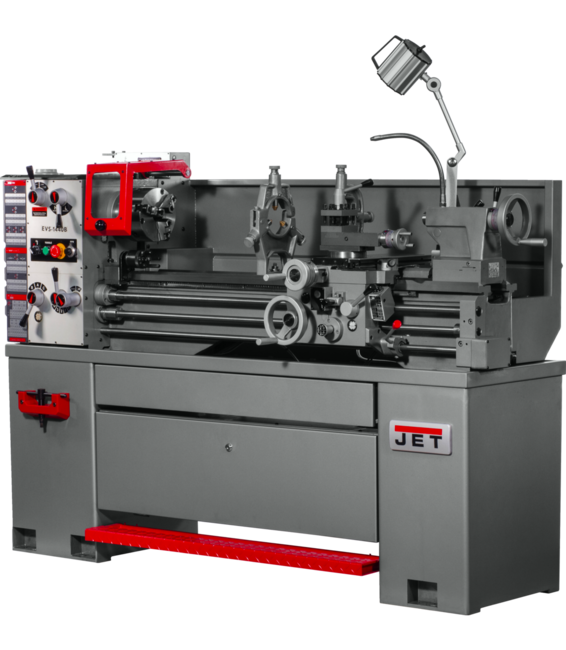

EVS-1440B EVS LATHE W 203 & CC

The EVS-1440B is engineered to maximize your shops output. The D1 4 Spindle is precision ground for accuracy and supported by class 7 tapered roller bearings capable of a run out maximum of .0004. The spindle also features an apron-mounted actuation control and jog button for easy gear engagement and spindle inching. The two-speed gearbox allows operators to easily work at low speeds from 40 to 365 RPM, and at high speeds from 220 to 2,000 RPM. Additionally, the tailstock may be offset for turning taper. Meehanite castings retain their tolerance and remain rigid over many years of machining.

EVS-1440 Electronic Variable Speed lathe with Acu-Rite 203 DRO and Collet Closer, 3HP

Features & Benefits

• Compound and cross slide have backlash elimination
• Electronic Chuck Key Docking Station
• Front Removable Chip Tray
• Full Length Splash Guard
• Independent lead screw and feed rod
• Integrated locking tool storage cabinet in the stand
• LED RPM readout allows for precise turning speeds
• Safety on/off switch
• Treading Dial Indicator
• V-Way bed design is induction hardened and ground
