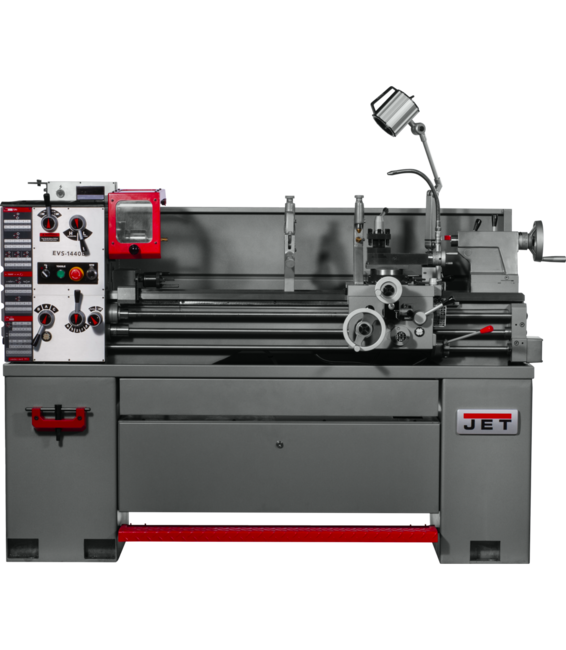

EVS-1440B EVS LATHE W 203

Lathes

The EVS-1440B is engineered to maximize your shops output. The D1 4 Spindle is precision ground for accuracy and supported by class 7 tapered roller bearings capable of a run out maximum of .0004. The spindle also features an apron-mounted actuation control and jog button for easy gear engagement and spindle inching. The two-speed gearbox allows operators to easily work at low speeds from 40 to 365 RPM, and at high speeds from 220 to 2,000 RPM. Additionally, the tailstock may be offset for turning taper. Meehanite castings retain their tolerance and remain rigid over many years of machining.

EVS-1440 Electronic Variable Speed lathe with Acu-Rite 203 DRO,3HP

Features & Benefits

Compound and cross slide have backlash elimination
Electronic Chuck Key Docking Station
Front Removable Chip Tray
Full Length Splash Guard
Independent lead screw and feed rod
Integrated locking tool storage cabinet in the stand
LED RPM readout allows for precise turning speeds
Safety on/off switch
Treading Dial Indicator
V-Way bed design is induction hardened and ground

SAP EAN Number Code (UPC)	731325791976
Model Number	EVS-1440B
SAP Base Unit of Measure	EA
SAP Commodity Code	8458.19.0020
SAP Country of Origin	Taiwan
Warranty	2 Year
SAP Delivery Plant	JNA
SAP Length	68.5
SAP Unit of Dimension	IN
SAP Height	50
SAP Unit of Dimension	IN
SAP Width	28.3
SAP Unit of Dimension	IN
SAP Gross Weight	1584
SAP Weight Unit	LBS
SAP Net weight	1320
SAP Weight Unit	LBS
SAP Transportation Group	LTL
BOM Products	311440,T203-0632J
Compound Slide Travel (In.)	3-1/2
Cross Slide Travel (In.)	7.0000
Cross Slide Travel (In.) (Unit)	Inch
End User Sellable	No
Gross Weight (Lbs)	1584.0000
Gross Weight (Lbs) (Unit)	Pound
Item Display Order	197.0000
Length of Gap (In.)	9-1/2
Max Tool Size (In.)	3/4 x 3/4
Motor (HP)	3HP, 230/460V, 3PH
Net Weight (Lbs.)	1320.0000
Net Weight (Lbs.) (Unit)	Pound
Number of Inch Threads	34.0000
Number of Longitudinal and Cross Feed Rates	25
Number of Metric Threads	34.0000
Overall Dimensions (L x W x H) (In.)	68.5 x 28.3 x 50
Prop 65	None
Range of Inch Threads (TPI)	2-56
Range of Longitudinal Feeds (IPR)	0.0016-0.0460
Range of Metric Threads	0.5-12
Range of Spindle Speeds (RPM)	40-2000
Spindle Bore (In.)	1-1/2
Spindle Mount (English United States, Ecommerce)	D1-4
Spindle Taper with Sleeve (English United States, Ecommerce)	MT-5
Steady Rest Capacity (In.)	0.23-0.61 Copper Shaft ( Standard) 0.20-2.36 Bearing Roller(OP)
Swing Over Bed (In.)	14
Swing Over Cross Slide (In.)	9-1/16
Tailstock Spindle Travel (In.)	6-1/8
Taper in Tailstock Spindle	MT-3
Width of Bed (In.)	7.48

Part #: 311444

Price: $20,599.00
