EVS-1440B EVS LATHE

Lathes

The EVS-1440B is engineered to maximize your shops output. The D1 4 Spindle is precision ground for accuracy and supported by class 7 tapered roller bearings capable of a run out maximum of .0004. The spindle also features an apron-mounted actuation control and jog button for easy gear engagement and spindle inching. The two-speed gearbox allows operators to easily work at low speeds from 40 to 365 RPM, and at high speeds from 220 to 2,000 RPM. Additionally, the tailstock may be offset for turning taper. Meehanite castings retain their tolerance and remain rigid over many years of machining.

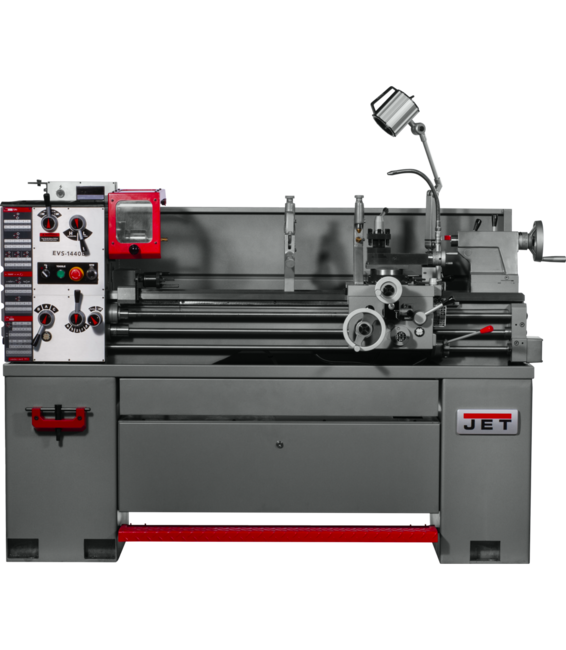

EVS-1440B Electronic Variable Speed Bench Lathe, 3HP

Features & Benefits

Standard Equipment
6" 3-Jaw Chuck
Threading Dial Indictor
Steady & Follow Rest
LED Work Lamp
4-Position Carriage stop
Chuck Guard
Threading Dial Indicator
Compound and cross slide have backlash elimination
Electronic Chuck Key Docking Station

SAP EAN Number Code (UPC)	731325785777
Model Number	EVS-1440B
SAP Base Unit of Measure	EA
SAP Commodity Code	8458.19.0090
SAP Country of Origin	Taiwan
Warranty	2 Year
SAP Delivery Plant	JNA
SAP Length	68.5
SAP Unit of Dimension	IN
SAP Height	50
SAP Unit of Dimension	IN
SAP Width	28.3
SAP Unit of Dimension	IN
SAP Gross Weight	1584
SAP Weight Unit	LBS
SAP Net weight	1320
SAP Weight Unit	LBS
SAP Transportation Group	LTL
Compound Slide Travel (In.)	3-1/2
Cross Slide Travel (In.)	7.0000
Cross Slide Travel (In.) (Unit)	Inch
Distance Between Centers (In.)	40
Drive	EVS
End User Sellable	No
Gross Weight (Lbs)	1584.0000
Gross Weight (Lbs) (Unit)	Pound
Input Power	230V 1 or 3 Phase
Item Display Order	193.0000
Length of Gap (In.)	9-1/2
Max Tool Size (In.)	3/4 x 3/4
Motor (HP)	3HP, 230/460V, 3PH
Motor Phase	3
Motor Power (HP)	3
Motor Voltage (V.)	230/460
Net Weight (Lbs.)	1320.0000
Net Weight (Lbs.) (Unit)	Pound
Number of Inch Threads	34.0000
Number of Longitudinal and Cross Feed Rates	25
Number of Metric Threads	34.0000
Number of Spindle Speeds	Variable
Overall Dimensions (L x W x H) (In.)	68.5 x 28.3 x 50
Prewired Voltage (V.)	230
Prop 65	Cancer and Reproductive Harm
Range of Cross Feeds (IPR)	25
Range of Inch Threads (TPI)	2-56
Range of Longitudinal Feeds (IPR)	0.0016-0.0460
Range of Metric Threads	0.5-12
Range of Spindle Speeds (RPM)	40-2000
Configurator Option Type	Base Machine
Shipping Dimensions (L x W x H) (In.)	76 x 30 x 61
Spindle Bore (In.)	1-1/2
Spindle Mount (English United States, Ecommerce)	D1-4
Spindle Taper	Morse #5
Spindle Taper with Sleeve (English United States, Ecommerce)	MT-5
Spindle Thread (In./TPI)	2 - 56
Steady Rest Capacity (In.)	0.23-0.61 Copper Shaft ( Standard) 0.20-2.36 Bearing Roller(OP)
Swing Over Bed (In.)	14
Swing Over Cross Slide (In.)	9-1/16
Tailstock Spindle Travel (In.)	6-1/8
Taper in Tailstock Spindle	MT-3
Weight (Lbs.)	1584.0000
Weight (Lbs.) (Unit)	Pound
Width of Bed (In.)	7.48

Part #: 311440

Price: $15,149.00
