GH-1440B GH BNCH LTH W TAPR ATT

Name: GH-1440B GH BNCH LTH W TAPR ATT
Brand: Jet
SKU: 323442
Price: 14359.00 USD
Availability: InStock

Lathes

<< Back

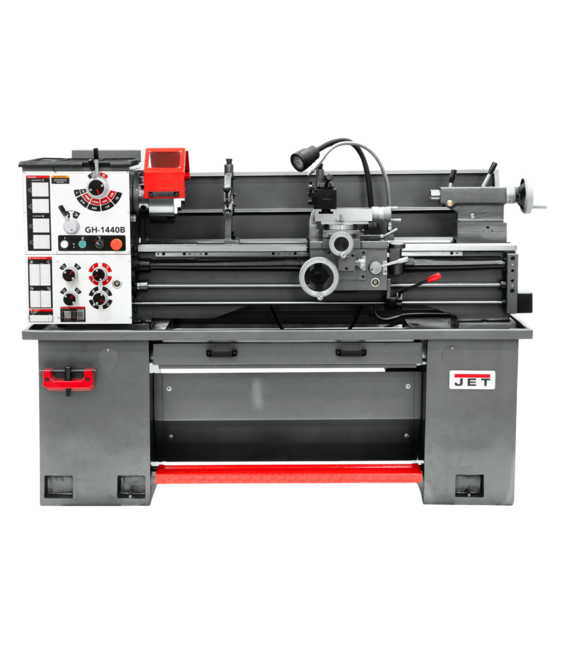

This new JET GH-1440B Geared Head Bench Lathe is engineered for smooth, quiet operation and user versatility. Positioned on a heavy-duty cast iron stand with a newly added built-in footbrake, the GH-1440B includes precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for ultimate working durability. The GH1440B also includes a patented electronic chuck key docking station that prevents startup without the chuck key when safely docked.

GH-1440B with Taper Attachment

Features & Benefits

Compound and cross slide have backlash adjustment
Emergency stop within easy reach of the Operator
Enclosed gearbox design provides smooth, quiet operation
Gearbox gives wide range of inch & metric threading & feed capabilities with few gear changes
Spindle Spider available for ease of turning Gun barrels
Standard Accessories
Steady Rest with Roller Bearings
Tailstock may be offset for turning taper

SAP EAN Number Code (UPC)	731325733952
Model Number	GH-1440B
SAP Base Unit of Measure	EA
SAP Commodity Code	8458.19.0020
SAP Country of Origin	China
Warranty	2 Year
SAP Delivery Plant	JNA
SAP Length	76
SAP Unit of Dimension	IN
SAP Height	60
SAP Unit of Dimension	IN
SAP Width	30
SAP Unit of Dimension	IN
SAP Gross Weight	1791
SAP Weight Unit	LBS
SAP Net weight	1610
SAP Weight Unit	LBS
SAP Transportation Group	LTL
Accessories Products	321431,650014,650226,650295,650300,650305
BOM Products	321442,331440
Carriage Travel (In.)	37-2/5
Compound Slide Travel (In.)	3-1/2
Cross Slide Travel (In.)	7.0000
Cross Slide Travel (In.) (Unit)	Inch
End User Sellable	No
Item Display Order	153.0000
Length of Gap (In.)	8
Max Tool Size (In.)	4/5 x 4/5
Motor (HP)	2 HP, 230V, Single Phase
Number of Inch Threads	34.0000
Number of Longitudinal and Cross Feed Rates	32/32
Number of Metric Threads	26.0000
Number of Spindle Speeds	8
Overall Dimensions (L x W x H) (In.)	76-13/32 x 29-29/32 x 59-13/16
Package Name	GH-1440B with Taper Attachment
Prop 65	Cancer and Reproductive Harm
Range of Cross Feeds (IPR)	0.007 -0.0187
Range of Inch Threads (TPI)	4-56
Range of Longitudinal Feeds (IPR)	0.002 -0.0548
Range of Metric Threads	0.4-7
Range of Spindle Speeds (RPM)	70-1900
Spindle Bore (In.)	2
Spindle Mount (English United States, Ecommerce)	D1-5
Spindle Taper with Sleeve (English United States, Ecommerce)	MT6
Steady Rest Capacity (In.)	0.31-2.95
Swing Over Bed (In.)	14
Swing Over Cross Slide (In.)	8
Swing Through Gap (In.)	20
Tailstock Spindle Travel (In.)	4
Taper in Tailstock Spindle	MT4
Weight (Lbs.)	1753.0000
Weight (Lbs.) (Unit)	Pound
Width of Bed (In.)	7.32

Part #: 323442

Price: $14,359.00

Quantity:
