GH-26120ZH LATHE 4" BORE (TEXT)

Name: GH-26120ZH LATHE 4" BORE (TEXT)
Brand: Jet
SKU: 321890
Price: 46675.00 USD
Availability: InStock

Lathes

<< Back

Constructed using the Certified Meehanite casting process for added durability, the JET ZH-Series 4-1/8 Spindle Bore Lathes provide consistent and reliable operation. Features include a clutch operated headstock with all headstock gears hardened and ground, a universal gearbox, fully integrated coolant system, and a rapid traverse on the apron that makes the ZH-Series perfect for high-output production applications. These are the features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.

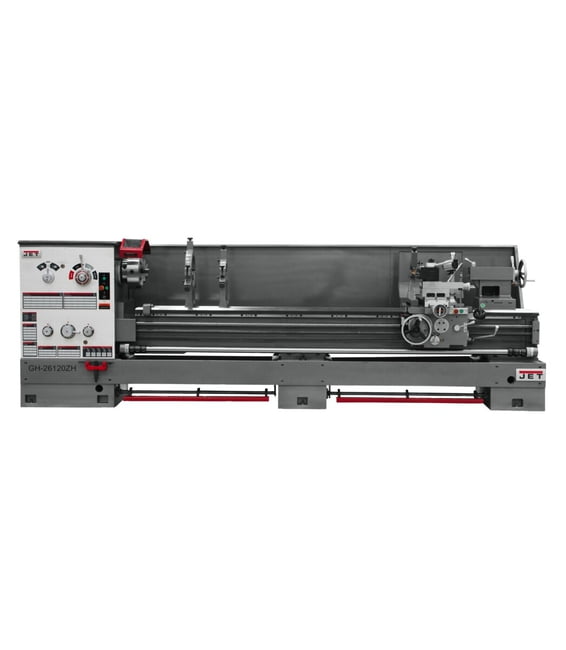

GH-26120ZH, 4-1/8" Spindle Bore Geared Head Lathe

Features & Benefits

12" 3 Jaw scroll chuck with top reversing jaws
2 Steady rests with roller bearings
Bed ways are induction hardened and ground for durability
E-Stop on Carriage for added safety
Electronic Chuck Key Holder
Fitted top mats to hold tooling
Full Length Splash Guard
Heavy-duty tailstock and quill
Large easy to use foot brake
Rapid power traverse to cross slide and carriage

SAP EAN Number Code (UPC)	662756127976
Model Number	GH-26120ZH
SAP Base Unit of Measure	EA
SAP Commodity Code	8458.19.0030
SAP Country of Origin	China
Warranty	2 Year
SAP Delivery Plant	JNA
SAP Length	183
SAP Unit of Dimension	IN
SAP Height	79
SAP Unit of Dimension	IN
SAP Width	46
SAP Unit of Dimension	IN
SAP Gross Weight	9471
SAP Weight Unit	LBS
SAP Net weight	9362
SAP Weight Unit	LBS
SAP Transportation Group	Flatbed
Accessories Products	321293,650290,650295,650300,650305
30 Point inspection	JET 30 Point
Bed Gap (In.)	8
Carriage Travel (In.)	108-1/4
Compound Slide Travel (In.)	5-1/2
Coolant Pump Motor	1/8
Diametrial Pitch Threads Number	22.0000
Drive	Geared Head
End User Sellable	No
Gross Weight (Lbs)	9471.0000
Gross Weight (Lbs) (Unit)	Pound
Item Display Order	1.0000
Length of Gap (In.)	8
Max Tool Size (In.)	1-1/4 x 1-1/4
Modular Pitch Threads Number	18.0000
Modular Pitch Threads Range	0.5-7
Motor (HP)	10 HP, 230/460, 3 Ph
Motor Phase	3
Motor Power (HP)	10
Motor Voltage (V.)	230/460
Net Weight (Lbs.)	9362.0000
Net Weight (Lbs.) (Unit)	Pound
Number of Inch Threads	48.0000
Number of Longitudinal and Cross Feed Rates	65
Number of Metric Threads	22.0000
Number of Spindle Speeds	12
Overall Dimensions (L x W x H) (In.)	178 x 43 x 57
Overall Height (In.)	57
Prewired Voltage (V.)	176 x 43 x 57
Prop 65	Cancer and Reproductive Harm
Range of Cross Feeds (IPR)	.0040 - .0404
Range of Inch Threads (TPI)	2 - 30
Range of Longitudinal Feeds (IPR)	.0023 - .0937
Range of Metric Threads	1 - 14
Range of Spindle Speeds (RPM)	36 - 1,600
Configurator Option Type	Base Machine
Shipping Dimensions (L x W x H) (In.)	178 x 43 x 57
Size (English United States, Ecommerce)	26 x 120
Spindle Bore (In.)	4-1/8
Spindle Mount (English United States, Ecommerce)	D1-8
Spindle Speeds	12
Spindle Taper	MT5
Spindle Taper with Sleeve (English United States, Ecommerce)	MT-5
Steady Rest Capacity (In.)	Small 25/32 - 4-29/32, Large 3-15/16 - 9-7/16
Style (Type)	Engine - Large Spindle Bore
Swing Over Bed (In.)	26
Swing Over Cross Slide (In.)	16-1/2
Swing Through Gap (In.)	34
Tailstock Spindle Travel (In.)	6
Taper in Tailstock Spindle	MT-5
Weight (Lbs.)	9362.0000
Weight (Lbs.) (Unit)	Pound
Width of Bed (In.)	16
Wiring Remarks	Additional Fee required to rewire to 460V

Part #: 321890

Price: $46,675.00

Quantity:
