GH-2680ZH w/ Newall DP700 & Taper Attach

Constructed using the Certified Meehanite casting process for added durability, the JET ZH-Series 4-1/8 Spindle Bore Lathes provide consistent and reliable operation. Features include a clutch operated headstock with all headstock gears hardened and ground, a universal gearbox, fully integrated coolant system, and a rapid traverse on the apron that makes the ZH-Series perfect for high-output production applications. These are the features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.

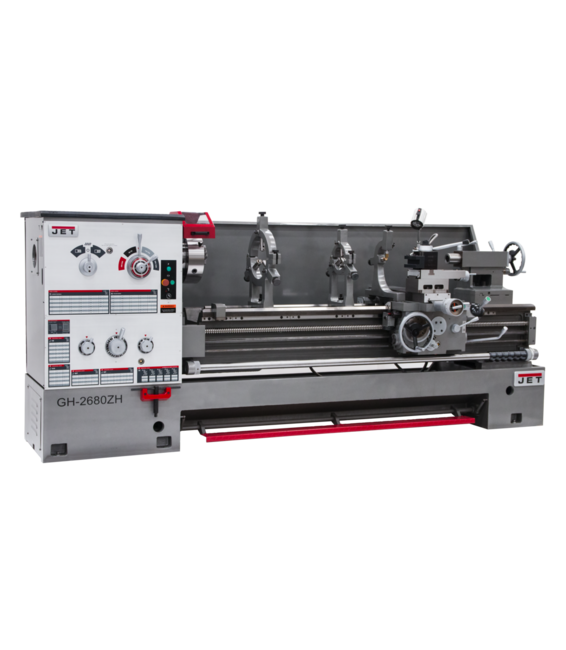

GH-2680ZH With Newall DP700 DRO and Taper Attachment

Features & Benefits

  • 12" 3 Jaw scroll chuck with top reversing jaws
  • 2 Steady rests with roller bearings
  • Bed ways are induction hardened and ground for durability
  • E-Stop on Carriage for added safety
  • Electronic Chuck Key Holder
  • Fitted top mats to hold tooling
  • Full Length Splash Guard
  • Heavy-duty tailstock and quill
  • Large easy to use foot brake
  • Rapid power traverse to cross slide and carriage
SAP EAN Number Code (UPC)731325247749
Model NumberGH-2680ZH
SAP Base Unit of MeasureEA
SAP Country of OriginChina
Warranty2 Year
SAP Delivery PlantJNA
SAP Gross Weight9251
SAP Weight UnitLBS
SAP Net weight8532
SAP Weight UnitLBS
SAP Transportation GroupFlatbed
Accessories Products650290,650295,650300,650305
BOM Products321293,321860,J1280DP700L
30 Point inspectionJET 30 Point
Carriage Travel (In.)72-1/2
Compound Slide Travel (In.)5-1/2
DriveGeared Head
End User SellableNo
Item Display Order13.0000
Length of Gap (In.)8
Max Tool Size (In.)1-1/4 x 1-1/4
Motor (HP)10 HP, 230/460, 3 Ph
Number of Inch Threads48.0000
Number of Longitudinal and Cross Feed Rates65
Number of Metric Threads22.0000
Number of Spindle Speeds12
Overall Dimensions (L x W x H) (In.)138 x 43 x 57
Prop 65Cancer and Reproductive Harm
Range of Cross Feeds (IPR).010 - .0404
Range of Inch Threads (TPI)2-30
Range of Longitudinal Feeds (IPR).0023 - .0937
Range of Metric Threads1 - 14
Range of Spindle Speeds (RPM)36 - 1,600
Size (English United States, Ecommerce)26 x 80
Spindle Bore (In.)4-1/8
Spindle Mount (English United States, Ecommerce)D1-8
Spindle Taper with Sleeve (English United States, Ecommerce)MT-5
Steady Rest Capacity (In.)Small 25/32 - 4-29/32, Large 3-15/16 - 9-7/16
Style (Type)Engine - Large Spindle Bore
Swing Over Bed (In.)26
Swing Over Cross Slide (In.)16-1/2
Swing Through Gap (In.)34
Tailstock Spindle Travel (In.)6
Taper in Tailstock SpindleMT-5
Weight (Lbs.)8514.0000
Weight (Lbs.) (Unit)Pound
Width of Bed (In.)16

Part #: 321862

Price: $54,769.00
