GHB-1236 GH BNCH LTH W/203 DRO

Name: GHB-1236 GH BNCH LTH W/203 DRO
Brand: Jet
SKU: 323230
Price: 13489.00 USD
Availability: InStock

Lathes

<< Back

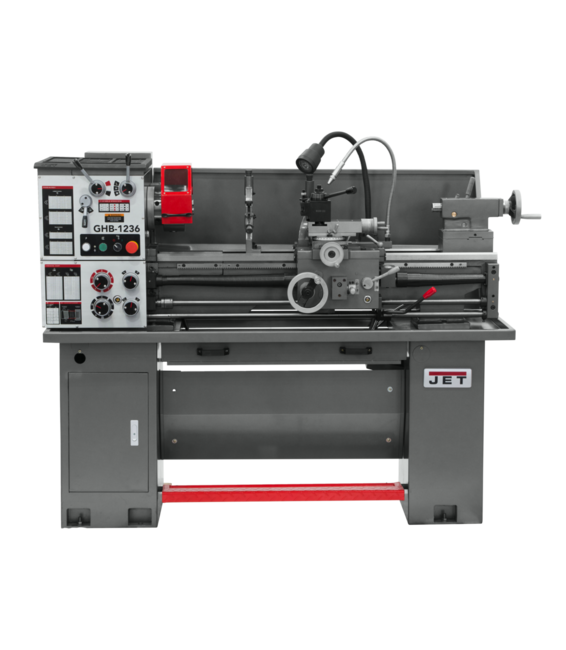

This new JET GHB-1236 Geared Head Bench Lathe is engineered to cut and taper with exacting accuracy. Positioned on a heavy-duty cast iron stand with a newly added built-in footbrake, the GHB-1236 features precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for ultimate working durability.

GHB-1236 Geared Head Bench Lathe & Acu-Rite 203 DRO in Jet Metalworking, Turning, Lathes

Features & Benefits

Compound and cross slide have backlash adjustment
Emergency stop within easy reach of the Operator
Enclosed gearbox design provides smooth, quiet operation
Gearbox gives wide range of inch & metric threading & feed capabilities with few gear changes
Mounted on stand with foot pedal, coolant and ready to use
Spindle Spider available for ease of turning Gun barrels
Steady Rest with Roller Bearings
Tailstock may be offset for turning taper

SAP EAN Number Code (UPC)	731325733914
Model Number	GHB-1236
SAP Base Unit of Measure	EA
SAP Commodity Code	8458.19.0020
SAP Country of Origin	China
Warranty	2 Year
SAP Delivery Plant	JNA
SAP Length	66
SAP Unit of Dimension	IN
SAP Height	58
SAP Unit of Dimension	IN
SAP Width	30
SAP Unit of Dimension	IN
SAP Gross Weight	1297
SAP Weight Unit	LBS
SAP Net weight	1139
SAP Weight Unit	LBS
SAP Transportation Group	LTL-Dock Del Only
Accessories Products	650225,650295
BOM Products	321236,T203-0836J50
Carriage Travel (In.)	27-3/8
Compound Slide Travel (In.)	3
End User Sellable	No
Item Display Order	184.0000
Max Tool Size (In.)	3/4 x 3/4
Motor (HP)	2HP, 230V, Single Phase
Number of Inch Threads	36.0000
Number of Longitudinal and Cross Feed Rates	48/36
Number of Metric Threads	32.0000
Number of Spindle Speeds	9
Overall Dimensions (L x W x H) (In.)	66.14 x 29.53 x 57.48
Package Name	GHB-1236 GH BNCH LTH W/200S DRO
Prop 65	Cancer and Reproductive Harm
Range of Cross Feeds (IPR)	0.0014 - 0.0116
Range of Inch Threads (TPI)	4-60
Range of Longitudinal Feeds (IPR)	0.0019 - 0.0472
Range of Metric Threads	0.4-7mm
Range of Spindle Speeds (RPM)	75 - 1400
Spindle Bore (In.)	1.575
Spindle Mount (English United States, Ecommerce)	D1-4
Spindle Taper with Sleeve (English United States, Ecommerce)	MT-5
Steady Rest Capacity (In.)	0.31-2.95
Swing Over Bed (In.)	12
Swing Over Cross Slide (In.)	7-1/2
Swing Through Gap (In.)	18
Tailstock Spindle Travel (In.)	3-1/2
Taper in Tailstock Spindle	MT-3
Weight (Lbs.)	1210.0000
Weight (Lbs.) (Unit)	Pound
Width of Bed (In.)	7.12

Part #: 323230

Price: $13,489.00
