GHB-1340A W NMS300 DRO

Name: GHB-1340A W NMS300 DRO
Brand: Jet
SKU: 323131
Price: 12129.00 USD
Availability: InStock

Lathes

JET Geared Head Bench Lathes feature an enclosed gearbox for smooth, quiet operation. Precision roller bearings support the hardened and ground spindle resulting in tight tolerances. Headstock is constantly oiled during operation to keep down needed maintenance and repair. Each JET Lathe comes loaded with features youve come to expect, all backed by the industry leading JET Two Year Warranty.

GHB-1340A Lathe With Newall NMS300 DRO

Features & Benefits

6" 3-jaw direct mount chuck with top reversing jaw
Compound and cross slide have backlash elimination
Fast, easy speed changes
Hardened and ground gears are featured in the headstock and gearbox

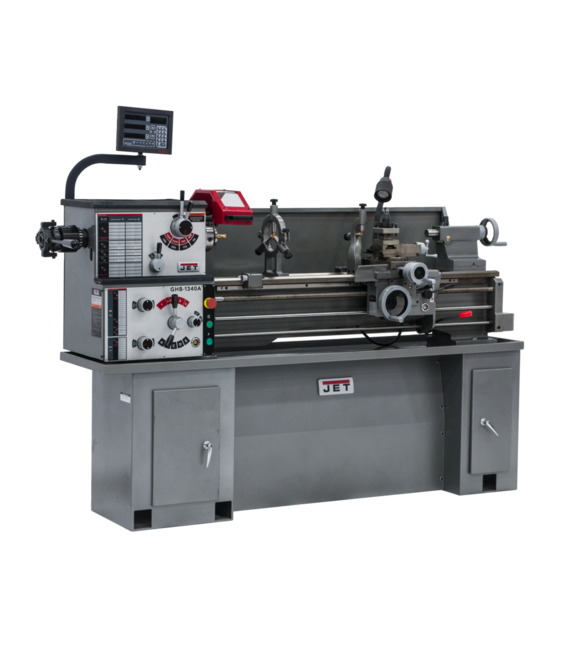

Image shown with optional bench, p/n 321443AK
Independent lead screw and feed rod
Spindle actuation control is apron mounted
Tailstock may be offset for turning taper
Tolerance test certificate included
V-Way bed design is induction hardened and ground

SAP EAN Number Code (UPC)	731325454062
Model Number	GHB-1340A
SAP Base Unit of Measure	EA
SAP Commodity Code	8458.19.0020
SAP Country of Origin	China
Warranty	2 Year
SAP Delivery Plant	JNA
SAP Length	80
SAP Unit of Dimension	IN
SAP Height	29
SAP Unit of Dimension	IN
SAP Width	30
SAP Unit of Dimension	IN
SAP Gross Weight	1154
SAP Weight Unit	LBS
SAP Net weight	1154
SAP Weight Unit	LBS
SAP Transportation Group	LTL-Dock Del Only
Carriage Travel (In.)	35
Compound Slide Travel (In.)	2-11/16
Drive	Geared Head
End User Sellable	No
Item Display Order	174.0000
Length of Gap (In.)	8
Max Tool Size (In.)	5/8 x 5/8
Motor (HP)	2 HP, 230V, 1Ph
Number of Inch Threads	38.0000
Number of Longitudinal and Cross Feed Rates	40
Number of Metric Threads	23.0000
Number of Spindle Speeds	8
Overall Dimensions (L x W x H) (In.)	79 x 28-1/2 x 30
Prop 65	Cancer and Reproductive Harm
Range of Cross Feeds (IPR)	.0006 - .0130
Range of Inch Threads (TPI)	3-1/2 - 80
Range of Longitudinal Feeds (IPR)	.0018 - .0374
Range of Metric Threads	.45 - 10
Range of Spindle Speeds (RPM)	70 - 2,000
Size (English United States, Ecommerce)	13 x 40
Spindle Bore (In.)	1-3/8
Spindle Mount (English United States, Ecommerce)	D1-4
Spindle Taper with Sleeve (English United States, Ecommerce)	MT-5 (MT-3)
Steady Rest Capacity (In.)	2-3/4
Style (Type)	Bench - Geared Head
Swing Over Bed (In.)	13
Swing Over Cross Slide (In.)	7-25/32
Swing Through Gap (In.)	18-3/4
Tailstock Spindle Travel (In.)	3-3/4
Taper in Tailstock Spindle	MT-3
Weight (Lbs.)	1154.0000
Weight (Lbs.) (Unit)	Pound
Width of Bed (In.)	7-3/8

Part #: 323131

Price: $12,129.00

Quantity:
