PM1000 TA SAW, 1-3/4HP 1PH 115V, 52" AF
PM1000 TA SAW, 1-3/4HP 1PH 115V, 52" AFPM1000 TA SAW, 1-3/4HP 1PH 115V, 52" AFPM1000 TA SAW, 1-3/4HP 1PH 115V, 52" AF

Evolution represents a process that is never fully complete. For a woodworker, inspirations evolve as life experiences shape our creativity. Skills evolve as we share tips and techniques with friends and mentors. And our workshops evolve as we refine our skills. At Powermatic, we're proud to introduce the latest example of our own evolution, the PM1000 cabinet table saw. As with every product Powermatic builds, the PM1000 redefines the limits of design, innovation and durability.

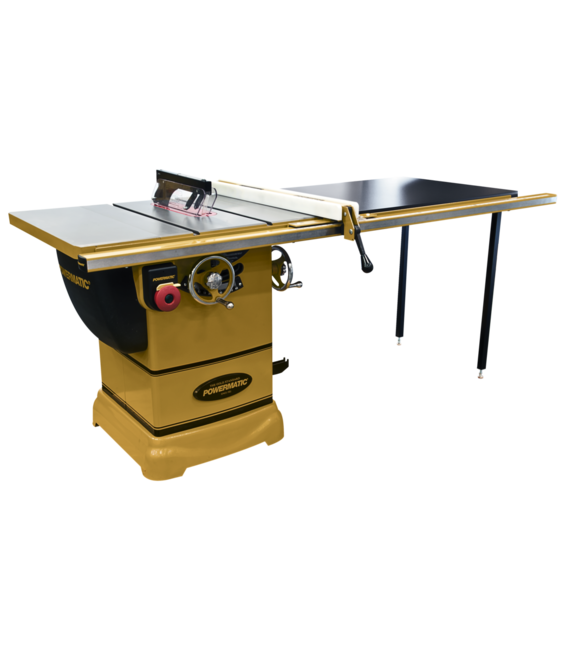

PM1000, 1-3/4HP 1PH Table Saw, w/ 52" Accu-Fence System

Features & Benefits

  • Blade surround and collection hose provide an unobstructed path, maximizing dust collection
  • Arbor lock allows for one handed blade changes with minimal tools
  • Conveniently located hands free power switch
  • Ergonomically designed 7 handwheels provide momentum, making blade height and bevel adjustments easy
  • Exclusive Accu-Fence provides rigidity and precision
  • Precision ground cast iron work surface features a beveled edge for smoother operation
  • Requires only 115V connection for easy installation
  • The poly-V belt drive system reduces vibration and maximizes efficiency
  • The sturdy miter gauge pivots 60 degrees to either side, allowing easy adjustment for a full range of cuts
  • Toolless guard assembly with independent side leaves is easy to use, maximizing safety
SAP EAN Number Code (UPC)731325263831
Model NumberPM1000
SAP Base Unit of MeasureEA
SAP Commodity Code8465.91.0036
SAP Country of OriginTaiwan
Warranty5 Year
SAP Delivery PlantJNA
SAP Length42
SAP Unit of DimensionIN
SAP Height53
SAP Unit of DimensionIN
SAP Width33
SAP Unit of DimensionIN
SAP Gross Weight464.8
SAP Weight UnitLBS
SAP Net weight393.8
SAP Weight UnitLBS
SAP Transportation GroupLTL
Accessories Products1791793,708097,708119,708158
Arbor Speed (RPM)4200
Blade Diameter (In.)10
Dust Collection Minimum CFM Required (CFM)350
Dust Port Outside Diameter (In.)4
End User SellableNo
Item Display Order4.0000
Maximum Depth of Cut at 45 Degrees (In.)2-1/8
Maximum Diameter of Dado (In.)8
Maximum Rip Left of Blade (In.)12
Maximum Rip Right of Blade (In.)52
Maximum Width of Dado (In.)13/16
Motor Phase1
Motor Power (HP)1-3/4
Prewired Voltage (V.)115
Prop 65Cancer and Reproductive Harm
Recommended Circuit Size (Amps.)20
Style (Type)Cabinet
Table in Front of Saw Blade at Maximum Depth of Cut (In.)10
Table TypeCast Iron
Suggested Products1791000K,1791229K,1791230K,PM23130K,PM23150K,PM25130K,PM25150K

Part #: 1791001K

Price: $3,199.99
