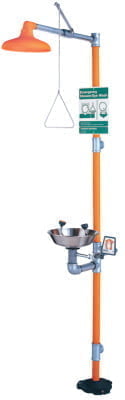

Eye Wash Shower Stations, 11 1/2 in, SS Safety Orange

Name: Eye Wash Shower Stations, 11 1/2 in, SS Safety Orange
Brand: Guardian
SKU: 333-G1902
Price: 1168.54 USD
Availability: InStock

Eye Wash

<< Back

Eye wash is activated by flag handle, two GS-Plus™ spray heads deliver a flood of water for rinsing eyes
Shower Valve: 1 in IPS chrome plated brass stay-open ball valve, furnished with stainless steel actuating arm and 29 in stainless steel pull rod
Spray Head Assembly: Two GS-Plus™ spray heads, each has a “flip top” dust cover, internal flow and filter to remove impurities from the water flow
Eye Wash Valve: 1/2 in IPS chrome plated brass stay-open ball valve, remains in operation until flag handle is returned to closed position
Pipe and Fittings: Schedule 40 galvanized steel, furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance

Bowl Diam	11 1/2 in
Bowl Height	36 in
Bowl Material	Stainless Steel
Color	Stainless Steel; Safety Orange
Height [Max]	90 in
Height [Nom]	90 in
Inlet Size	1 1/4 in
Length [Nom]	32.3 in
Outlet Size	1 1/4 in
Shower Head Diam	10 in
Shower Head Height	85 in
Shower Head Material	Safety Orange ABS
Type	Eye Wash & Shower Station
Width [Nom]	16.8 in
Wt.	41.4 lb

Country of Origin: US

Standard Pack: 1 EA

Part #: 333-G1902
