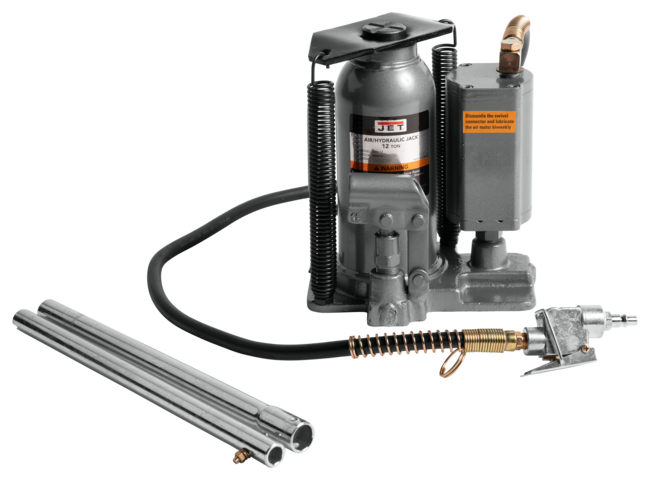

AHJ-12 12T AIR/HYD BOTTLE JACK

Bottle Jacks

JET AHJ Series Air/Hydraulic Bottle Jacks have a capacity of 12 or 20 tons, and is the ideal solution for lifting, pushing, spreading, bending, pressing or straightening. Each model functions in upright, angled or horizontal positions for increased versatility. JET AHJ Series Air/Hydraulic Bottle Jacks comply with ANSI/ASME B30.1 and PALD-1 standards.

AHJ-12, 12-Ton Air / Hydraulic Bottle Jack

Features & Benefits

Complies with ANSI/ASME B30.1 and PALD-1 Standard
Electric welded bases and cylinders virtually eliminating leaks for proven reliability
Labor saving air pump that connects to a pneumatic source for increased lifting speed
Lifting, pushing, spreading, bending, pressing or straightening capabilities
Lifting, pushing, spreading, bending, pressing or straightening capabilities for multi-function use

SAP EAN Number Code (UPC)	662755524684
Model Number	AHJ-12
SAP Base Unit of Measure	EA
SAP Commodity Code	8425.42.0000
SAP Country of Origin	China
Warranty	2 Year
SAP Delivery Plant	JNA
SAP Length	15.7
SAP Unit of Dimension	IN
SAP Height	12.6
SAP Unit of Dimension	IN
SAP Width	8.1
SAP Unit of Dimension	IN
SAP Gross Weight	34.05
SAP Weight Unit	LBS
SAP Net weight	30
SAP Weight Unit	LBS
SAP Transportation Group	Parcel
Air Pressure Required (PSI)	90-145
Base Dimensions (L x W) (In.)	8-1/4 x 6-2/7
End User Sellable	No
Item Display Order	14.0000
Load Capacity (Tons)	12
Maximum Height (In.)	18-2/3
Minimum Height (In.)	9-2/3
Piston Height (In.)	4-1/2
Piston Lift (In.)	4-1/2
Prop 65	Cancer and Reproductive Harm
Sell Sheets Asset Collection	[456612_ss_pdf],[456612_ss_en_pdf]
Weight (Lbs.)	25.0000
Weight (Lbs.) (Unit)	Pound

Part #: 456612

Price: $334.00
