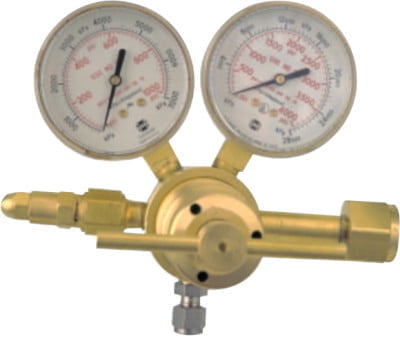

High Pressure Single Stage Piston Regulators, Inert Gas, CGA580, 3,000 psig
  • High pressure
  • Dead-end testing
  • May be panel mounted
  • Single stage design
  • Piston type actuation
  • All SR 4 series regulators have a swaged lock type stainless steel outlet fitting
  • Cartridge type seat assembly with PCTFE seat
  • Delrin® cap bushing for smooth adjustments
  • External adjustable relief valves on F and G range models
  • Hydrogen models have ventable relief valves
Body Material Machined Brass
Depth [Nom] 6 1/4 in
Filter Material Bronze; Sintered
Flow Range 100 - 1500 psig
Gas Type Inert Gas
Height [Nom] 6 1/2 in
Inlet Connection CGA 580
Inlet Pressure [Max] 3,000 psig
Length [Nom] 6 in
Outlet Pressure [Max] 1,500 psig
Outlet Pressure [Min] 100 psig
Outlet Size 1/4 in
Outlet Type Swagelok®
Width [Nom] 6 in
Wt. 4 lb

Standard Pack: 1 EA

Part #: 341-0781-1428

Price: $1,257.96
