DC-1100VX-5M, 1.5HP 1PH, 5M BAG FILTER
DC-1100VX-5M, 1.5HP 1PH, 5M BAG FILTERDC-1100VX-5M, 1.5HP 1PH, 5M BAG FILTERDC-1100VX-5M, 1.5HP 1PH, 5M BAG FILTER
DC-1100VX-5M, 1.5HP 1PH, 5M BAG FILTER

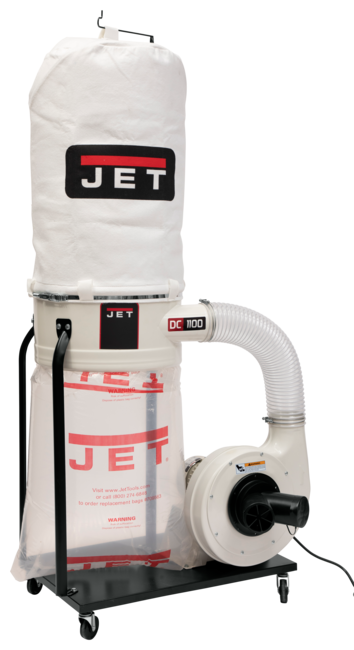

The JET DC-1100VX-5M features the exclusive Vortex Cone which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The filter bag captures up to 98% of 5-micron particles. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have a snap ring for fast installation and removal. Casters offer maneuverability within the shop.

DC-1100VX-5M Dust Collector, 1.5HP 1PH 115/230V, 5-Micron Bag Filter Kit

Features & Benefits

  • Eliminates premature filter clogging for sustained performance
  • High air velocity (CFM) design stands up to any competitive specifications
  • Includes four casters for maneuverability and total portability
  • Industrial controls designed for years of trouble-free use
  • Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
  • Quick-connect collection bags with elastic band for fast, easy installation and removal
  • Single-stage design for economical and quiet operation
  • Vortex Cone improves chip separation and collector bag packing efficiency
SAP EAN Number Code (UPC)731325175301
Model NumberDC-1100VX-5M
SAP Base Unit of MeasureEA
SAP Country of OriginTaiwan
Warranty5 Year
SAP Delivery PlantJNA
SAP Length37
SAP Unit of DimensionIN
SAP Height79
SAP Unit of DimensionIN
SAP Width22.5
SAP Unit of DimensionIN
SAP Gross Weight143
SAP Weight UnitLBS
SAP Net weight130
SAP Weight UnitLBS
SAP Transportation GroupLTL
Accessories Products708636C,708636MF,708636T,708639B,708698,708706,709563,717600,717650
1-Hose Connection Diameter (In.)6
2-Hoses Connection Diameter (In.)4
Air Flow @ 4" (CFM)1100
Bag Diameter (In.)20
Collection Bag Capacity (Cu. Ft.)5-3/10
Collection Bag Length (In.)30
Efficiency (Micron)5
End User SellableNo
Impeller MaterialSteel
Item Display Order50.0000
Microsite URLhttp://www.jettools.com/us/en/view-series/vortex-cone/Vortex
Motor Amps11/5.5
Motor Power (HP)1-1/2
Prewired Voltage (V.)115
Prop 65Cancer and Reproductive Harm
Sound Rating (Db.)70 - 80
Static Pressure (Wc.)10-1/2
Style (Type)Bag
Velocity @ 4" (FPM)12,571

Part #: 708658K

Price: $749.99
