JCDC-3 CYCLONE DUST COLLECTOR, 3HP KIT

Dust Collectors

<< Back

JCDC-3 CYCLONE DUST COLLECTOR, 3HP KIT
JCDC-3 CYCLONE DUST COLLECTOR, 3HP KITJCDC-3 CYCLONE DUST COLLECTOR, 3HP KITJCDC-3 CYCLONE DUST COLLECTOR, 3HP KIT
JCDC-3 CYCLONE DUST COLLECTOR, 3HP KITJCDC-3 CYCLONE DUST COLLECTOR, 3HP KIT

Are you ready to get more from your dust collector? The Cyclone Dust Collector Collection from JET delivers the efficiency youve been waiting for. With a direct mount filter, a radio frequency remote control and a large collection bin these dust collectors take your shops capabilities to a new level. Upgrade to a JET Cyclone Dust Collector and experience The Power of Efficiency.

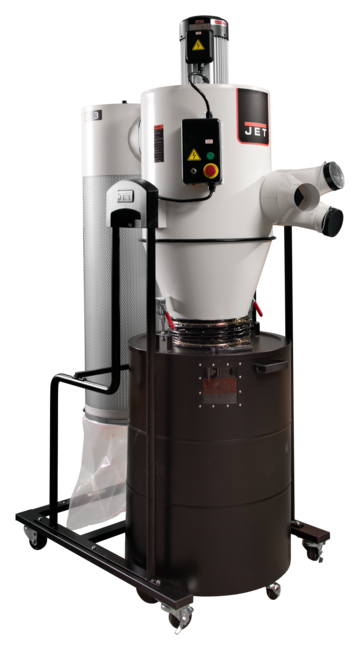

JCDC-3 Cyclone Dust Collector Kit, 3HP, 230V

Features & Benefits

  • Direct mounted filter eliminates inefficiencies from ridged flex hosing and bends
  • Double paddle manual cleaning system quickly cleans the pleated filter
  • Fine dust particles are filtered through pleated material that captures even the smallest particles down to 1 micron and below
  • Heavy debris is captured in a 66 gallon drum with quick release levers and independent casters for quick emptying
  • Heavy debris is pulled down to collection drum before debris stream reaches the filter, providing constant suction
  • Included radio frequency remote control works from up to 50 feet away
  • Remote timer settings allows system to run for 2, 4, 6, or 8 hours before automatic shutoff
  • Swivel casters make it easy to move the unit around the shop
  • Cyclone's two stage separation provides more working CFM than comparable horsepower single stage units
SAP EAN Number Code (UPC)731325428964
Model NumberJCDC-3
SAP Base Unit of MeasureEA
SAP Commodity Code8421.39.8015
SAP Country of OriginTaiwan
Warranty5 Year
SAP Delivery PlantJNA
SAP Length54.7
SAP Unit of DimensionIN
SAP Height38.56
SAP Unit of DimensionIN
SAP Width30.13
SAP Unit of DimensionIN
SAP Gross Weight301
SAP Weight UnitKG
SAP Net weight242
SAP Weight UnitKG
SAP Transportation GroupParcel
Accessories Products717511,717531
1-Hose Connection Diameter (In.)8
3-Hoses Connection Diameter (In.)4
Canister Filter Length (In.)38-3/8
Collection Drum Capacity (gal.)55
End User SellableNo
Filter Efficiency (Micron)1
Impeller MaterialSteel
Item Display Order6.0000
MERV Value13
Motor Amps13
Motor Power (HP)3
Motor Voltage (V.)230
Prewired Voltage (V.)230
Prop 65Cancer and Reproductive Harm
Static Pressure Loss (EU Method) (Wc.)2.047
Static Pressure Loss (US Method) (Wc.)1.260

Part #: 717530K

Price: $2,649.99
