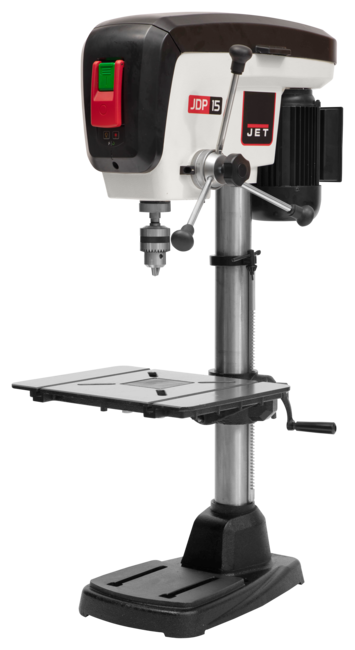

JDP-15B 15" BENCH DRILL PRESS

Drill Presses

The JET JDP-15B, 15 Benchtop Drill Press. From a full 3-1/8 of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. It features a long-lasting, built-in LED work light to provide direct lighting while reducing shadows. Another feature includes the one-handed belt-tensioning system and a large 12-1/2" x 17" work table which are all CSA Certified.

15" Benchtop Drill Press

Features & Benefits

Integrated depth stop makes repetitive drilling quick and easy
Large cast iron base provides stability
One-handed belt tensioning allows for rapid speed changes
Power switch features a safety key and large, paddle-style off button
Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system
Replaceable MDF table insert
Table edge lip designed to make clamping easy
Xacta-X laser system easily identifies the drill center

SAP EAN Number Code (UPC)	731325424263
Model Number	JDP-15B
SAP Base Unit of Measure	EA
SAP Commodity Code	8465.95.0055
SAP Country of Origin	China
Warranty	5 Year
SAP Delivery Plant	JNA
SAP Length	36.5
SAP Unit of Dimension	IN
SAP Height	12.81
SAP Unit of Dimension	IN
SAP Width	33.25
SAP Unit of Dimension	IN
SAP Gross Weight	165.5
SAP Weight Unit	LBS
SAP Net weight	154
SAP Weight Unit	LBS
SAP Transportation Group	LTL
Assembled Machine Dimensions (L x W x H) (In.) (English United States, Ecommerce)	27 x 17 x 43-7/8
Chuck Size (In.)	5/8
Column Diameter (In.)	2-3/4
End User Sellable	No
Item Display Order	20.0000
Motor Power (HP)	3/4
Motor Voltage (V.)	115
Number of Spindle Speeds	16
Prop 65	Cancer and Reproductive Harm
Spindle Distance to Base (In.)	26-3/4
Spindle Distance to Table (Max.) (In.)	18-5/16
Spindle Travel (In.)	3-1/8
Style (Type)	Benchtop
Swing (In.)	15
Table Size (L x W) (In.)	12-1/2 x 17
Weight (Lbs.)	154.0000
Weight (Lbs.) (Unit)	Pound

Part #: 716200

Price: $1,129.99

Quantity:
