JDP-15F 15" FLOOR DRILL PRESS

Drill Presses

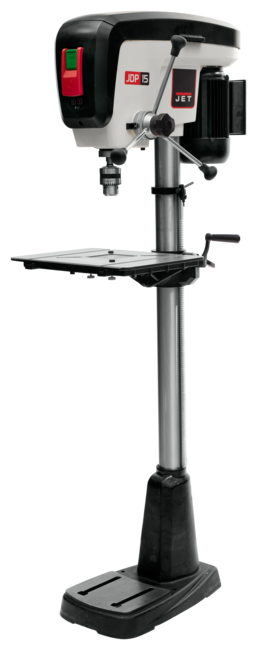

The JET JDP-15F, 15 Floor Standing Drill Press. From a full 3-1/8 of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press features a long-lasting, built-in LED work light to provide direct lighting while reducing shadows. Another feature includes the one-handed belt-tensioning system and a large 12-1/2" x 17" work table which are all CSA Certified.

15" Floorstanding Drill Press

Features & Benefits

Integrated depth stop makes repetitive drilling quick and easy
Large cast iron base provides stability
One-handed belt tensioning allows for rapid speed changes
Power switch features a safety key and large, paddle-style off button
Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system
Replaceable MDF table insert
Table edge lip designed to make clamping easy
Xacta-X laser system easily identifies the drill center

SAP EAN Number Code (UPC)	731325424270
Model Number	JDP-15F
SAP Base Unit of Measure	EA
SAP Commodity Code	8465.95.0055
SAP Country of Origin	China
Warranty	5 Year
SAP Delivery Plant	JNA
SAP Length	58
SAP Unit of Dimension	IN
SAP Height	12.81
SAP Unit of Dimension	IN
SAP Width	24.44
SAP Unit of Dimension	IN
SAP Gross Weight	183
SAP Weight Unit	LBS
SAP Net weight	172
SAP Weight Unit	LBS
SAP Transportation Group	LTL
Assembled Machine Dimensions (L x W x H) (In.) (English United States, Ecommerce)	27 x 17 x 63-1/4
Chuck Size (In.)	5/8
Column Diameter (In.)	2-3/4
End User Sellable	No
Item Display Order	40.0000
Motor Power (HP)	3/4
Motor Voltage (V.)	115
Number of Spindle Speeds	16
Prewired Voltage (V.)	115
Prop 65	Cancer and Reproductive Harm
Spindle Distance to Base (In.)	46-1/2
Spindle Distance to Table (Max.) (In.)	30-1/2
Spindle Travel (In.)	3-1/8
Style (Type)	Floorstanding Model
Swing (In.)	15
Table Size (L x W) (In.)	12-1/2 x 17
Weight (Lbs.)	172.0000
Weight (Lbs.) (Unit)	Pound

Part #: 716250

Price: $1,229.99

Quantity:
