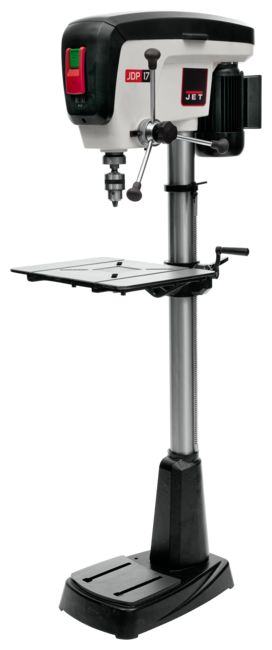

JDP-17 17" DRILL PRESS, 3/4HP

Drill Presses

Introducing the new JET JDP-17, 17 Drill Press. From a full 5 of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a long-lasting, built-in LED work light to provide direct lighting while reducing shadows. A large 14" x 19" work table provides plenty of support with an edge designed for easy clamping. CSA Certified.

17" Drill Press

Features & Benefits

Integrated depth stop makes repetitive drilling quick and easy
Large cast iron base provides stability
One-handed belt tensioning allows for rapid speed changes
Power switch features a safety key and large, paddle-style off button
Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system
Replaceable MDF table insert
Table edge lip designed to make clamping easy
Xacta-X laser system easily identifies the drill center

SAP EAN Number Code (UPC)	731325340013
Model Number	JDP-17
SAP Base Unit of Measure	EA
SAP Commodity Code	8465.95.0055
SAP Country of Origin	China
Warranty	5 Year
SAP Delivery Plant	JNA
SAP Unit of Dimension	IN
SAP Unit of Dimension	IN
SAP Unit of Dimension	IN
SAP Gross Weight	224
SAP Weight Unit	LBS
SAP Net weight	186
SAP Weight Unit	LBS
SAP Transportation Group	LTL
Assembled Machine Dimensions (L x W x H) (In.) (English United States, Ecommerce)	28-1/2 x 19 x 65
Chuck Distance to Base (In.)	42-7/8
Chuck Distance to Table (In.)	25-7/8
Chuck Size (In.)	5/8
Column Diameter (In.)	3-5/32
End User Sellable	No
Item Display Order	50.0000
Motor Power (HP)	3/4
Number of Spindle Speeds	16
Prop 65	Cancer and Reproductive Harm
Recommended Circuit Size (Amps.)	15
Spindle Distance to Base (In.)	46-1/2
Spindle Distance to Table (Max.) (In.)	30
Spindle Travel (In.)	5
Style (Type)	Floorstanding Model
Swing (In.)	16-7/8
Table Size (L x W) (In.)	14 x 19
Weight (Lbs.)	187.0000
Weight (Lbs.) (Unit)	Pound

Part #: 716300

Price: $1,329.99
