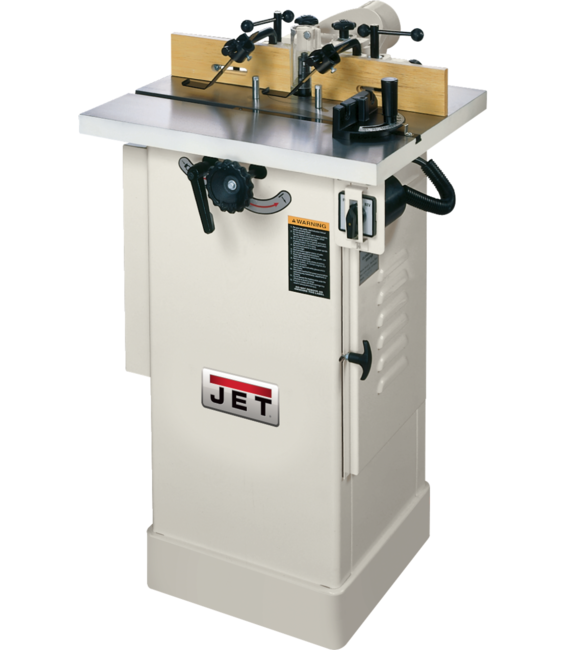

JWS-22CS 1 1/2 HD CS SHAPER

JWS-22CS, 1-1/2HP Shaper, 1Ph 115/230V, 1/2" and 3/4" Spindle

Features & Benefits

  • Starting Pins for irregular shaping
  • Forward/reverse switch for left and right hand operation
  • Two reversible spindle speeds lets you select the best speed and torque for different cutter diameters
  • Independent left and right fences feature micro-adjustment and have zero-clearance capability
  • Extra-large handwheel is conveniently located for fast, easy and accurate spindle height adjustments
  • Positive detent spindle lock allows safer, easy cutter set-up
  • 4" dust port connects to your collection system to keep your workplace dust and debris-free
  • Fully enclosed, heavy-duty steel stand has a removable cover for easy motor access
  • 1/2" and 3/4" interchangeable spindles and router bit collets for use with shaper cutter and router bits
UPC662755171109
SAP Material GroupWW150
SAP Material TypeZFIN
SAP Warranty5 Year
Model NumberJWS-22CS
SAP OwnerMWW
SAP Country of OriginTW
SAP Product CategoryWW
SAP Rounding ProfileNA
SAP Height0.000
SAP Length0.000
SAP Volume6.848
SAP Width0.000
Prop 65None
Spindle Size Under Nut (In.)1/2 (2-1/2), 3/4 (2-15/16)
Router Bit Collet Included1/4, 1/2
Spindle Speed (RPM)7000/9000
Table Opening Diameter (In.)5-1/4
Motor Power (HP)1-1/2
Spindles IncludedYes
Motor Phase (PH)1
Maximum Spindle Diameter (In.)1/2, 3/4
Table T-Slot (In.)3/4 x 3/8
Spindle Travel (In.)1-7/16
Table Height from Floor (In.)33-1/2
Fence Size (L x H) (In.)10 x 3-1/8
Prewired Voltage (V.)115
Motor Voltage (V.)115/230
Dust Port Outside Diameter (In.)4
Motor (amps)12/6
Table Insert Opening Diameter (In.)1-5/8, 3-1/4
Table Size (L x W) (In.)22-1/4 x 18-1/8

Part #: 708320

Price: $1,549.99
