JWS-25X JET SHAPER 3HP, 1PH

Shapers

<< Back

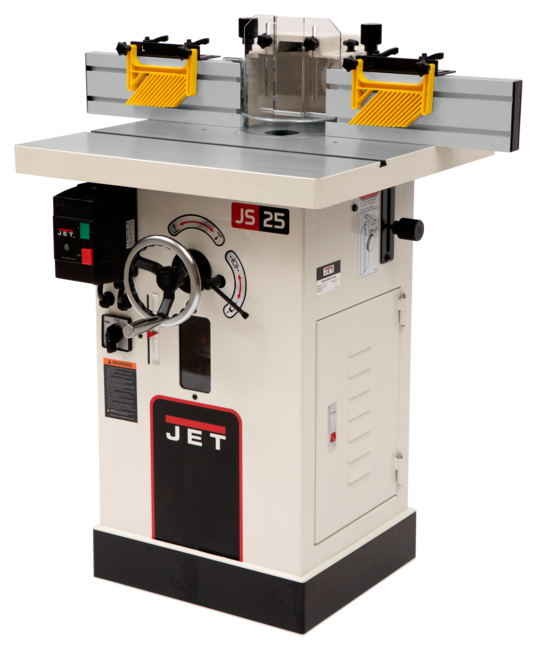

JWS-25X JET SHAPER 3HP, 1PH

The new model JWS-25X Shaper features a powerful 3HP motor with magnetic controls. The large 25x 25-1/2 precision ground cast iron table provides plenty of support. Safe, easy cutter set up is assisted by a positive detent spindle lock. The independently adjustable left and right fence has a built in 4 dust port.

JWS-25X, JET Shaper, 3HP, 1PH

Features & Benefits

  • Extra large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
  • Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
  • Reversible spindle speeds for diverse shaping jobs
  • Spindle lock for safe and easy cutter set up
  • Starting Pins for irregular shaping
  • Two-speeds let you select the best speed and torque for different cutter diameters
  • V-belt transfers maximum power to the spindle
SAP EAN Number Code (UPC)662756003942
Model NumberJWS-25X
SAP Base Unit of MeasureEA
SAP Commodity Code8465.92.0062
SAP Country of OriginTaiwan
Warranty5 Year
SAP Delivery PlantJNA
SAP Length43
SAP Unit of DimensionIN
SAP Height23
SAP Unit of DimensionIN
SAP Width25
SAP Unit of DimensionIN
SAP Gross Weight381
SAP Weight UnitLBS
SAP Net weight331
SAP Weight UnitLBS
SAP Transportation GroupLTL
Accessories Products708118,708318,708382,708383,708384,708387,708388
Dust Collection Minimum CFM Required (CFM)600
Dust Port Outside Diameter (In.)4
End User SellableNo
Item Display Order3.0000
Motor Amps16
Motor Power (HP)3
Motor Voltage (V.)230
Prewired Voltage (V.)230
Prop 65Cancer and Reproductive Harm
Recommended Circuit Size (Amps.)30
Spindle Travel (In.)3-1/2
Table Height from Floor (In.)33
Table Inserts (In.)2
Table Opening Diameter (In.)6-9/32
Table Size (L x W) (In.)25-1/2 x 25

Part #: 708309

Price: $2,799.99
Quantity:
