JWSS-22B - SCROLL SAW BASE MACH W/SWITCH

Scroll Saws

<< Back

JWSS-22B - SCROLL SAW BASE MACH W/SWITCH

Say hello to JET's 22" Scroll Saw. Combining best-in-class features with innovation and thoughtful design to create the machine you've been waiting for. The best part about this saw is the blade change process. Our exclusive upper mechanism clamps and tensions the blade in one step. In addition to the upper mechanism, the toolless lower blade holder is removable and the table features a slot for the blade. The features don't stop there: this saw offers twenty-two inches of throat capacity and an arm that tilts forty degrees left and forty five degrees right, keeping the worktable flat for more accurate cutting. This saw is designed to optimize your scrolling experience. From the variable speed range to a top lift, spring loaded arm it comes fully loaded with all the features youd expect.

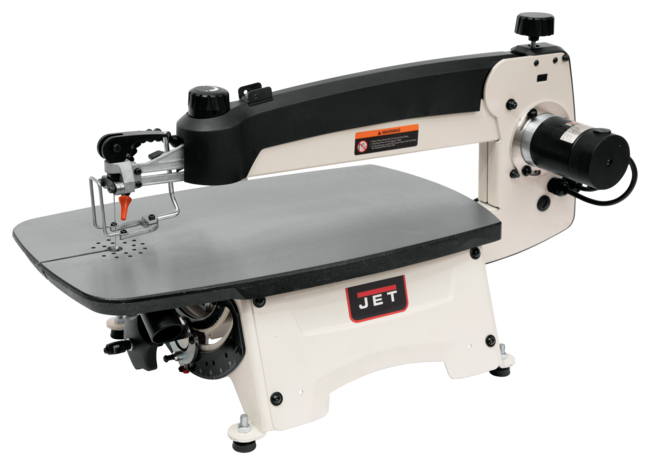

JWSS-22B 22" Scroll Saw with Foot Switch

Features & Benefits

  • Conveniently located speed and tension controls
  • Included Equipment: Material hold down, Onboard Dust Blower, Foot Switch
  • Integrated blade storage features slots for pre-loaded blades and a built-in wrench for changing blades
  • Large 12-7/8 x 23 cast iron table provides a stable working surface while also limiting vibration
  • Removable dust port on underside of table to collect dust at the source
  • Top lift, spring loaded arm raises 10 and stays up until pulled back down
  • Variable speed range of 400 1550 strokes per minute
SAP EAN Number Code (UPC)731325456417
Model NumberJWSS-22B
SAP Base Unit of MeasureEA
SAP Commodity Code8465.91.0049
SAP Country of OriginTaiwan
Warranty5 Year
SAP Delivery PlantJNA
SAP Length39.4
SAP Unit of DimensionIN
SAP Height23.6
SAP Unit of DimensionIN
SAP Width21.6
SAP Unit of DimensionIN
SAP Gross Weight90
SAP Weight UnitLBS
SAP Net weight68.2
SAP Weight UnitLBS
SAP Transportation GroupParcel
Accessories Products727200S,727201,JWSS22B-253,JWSS22B-335
Assembled Machine Dimensions (L x W x H) (In.) (English United States, Ecommerce)33 x 15-1/2 x 17-1/2
Easy2 URLhttp://content.jettools.com/assets/3D/scroll_vr.52.html
End User SellableNo
Item Display Order3.0000
Maximum Cutting Depth (In.)2
Motor Amps1.3
Net Weight (Lbs.)68.2000
Net Weight (Lbs.) (Unit)Pound
Prop 65Cancer and Reproductive Harm
Stroke Length (In.)3/4
Table Height (In.)7-3/4 to 8-3/4
Table MaterialCast Iron
Table Size (L x W) (In.)12-2/3 x 23-5/8
Tilting FunctionArm

Part #: 727200B

Price: $1,049.99
Quantity:
