JPM-13CS 13" PLNR/MLDR DELUX (TEXT)

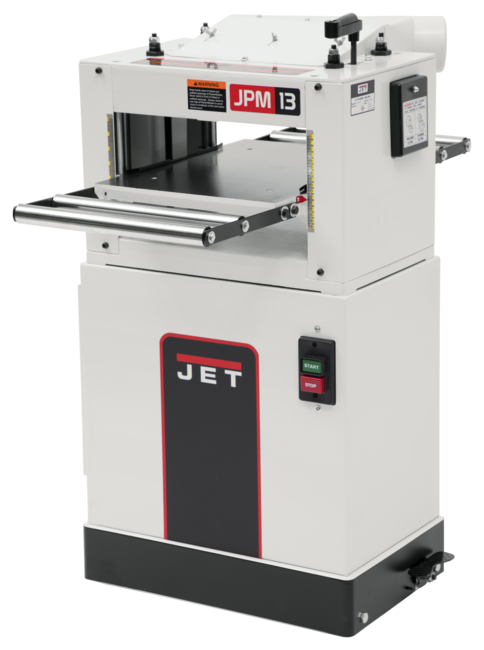

The JET JPM-13CS 13" Closed Stand Planer / Molder boasts a totally enclosed fan-cooled 1.5 HP motor which uses two matched V-belts to deliver smooth, consistent power to the cutter head. The sturdy cast iron table and base provide strength and reduce vibration during use. The Three cutter head design produces a superior finish in either application. Built in lockable caster add support and stability to the machine while allowing it to be maneuverable.

JPM-13CS, 13" Closed Stand Planer / Molder, 1-1/2HP, 1Ph, 115/230V

Features & Benefits

  • Exclusive angled 4" dust port keeps the dust hose out of the way while providing efficient chip and dust removal
  • Four precision-ground column design feature adds stability when raising and lowering the table
  • Infeed and outfeed rollers are adjustable and rubber-coated to support your workpiece without marring the wood
  • Molding cutter head accommodates over 40 standard molding cutter sets; most 2" or smaller heads can be installed without removing the planning knives to save you set-up time
  • Top-mounted height adjustment handle is easy to use for quick table height changes
  • Two speed gear box has feed rates set for optimum planing and molding results
SAP EAN Number Code (UPC)662755171147
Model NumberJPM-13CS
SAP Base Unit of MeasureEA
SAP Commodity Code8465.92.0034
SAP Country of OriginTaiwan
Warranty5 Year
SAP Delivery PlantJWA
SAP Unit of DimensionIN
SAP Unit of DimensionIN
SAP Unit of DimensionIN
SAP Gross Weight258
SAP Weight UnitLBS
SAP Net weight258
SAP Weight UnitLBS
SAP Transportation GroupLTL
Accessories Products708118,708361,708366,709209
Cutterhead Speed (RPM)4500.0000
Dust Port Outside Diameter (In.)4
End User SellableNo
Feed Rate - Molding (FPM)10
Maximum Planing Thickness (In.)6-1/8
Motor Amps15/7.5
Motor Power (HP)1-1/2
Number of Knives3
Prewired Voltage (V.)115
Prop 65Cancer and Reproductive Harm
Style (Type)Planer/Molder

Part #: 708524

Price: $1,699.99
Quantity:
