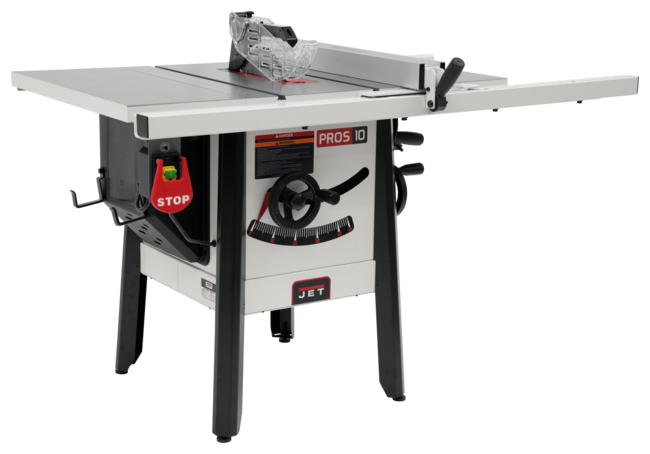

ProShop II, 115V, 30" Rip, Cast Wings

The JET ProShop Table Saw offers features you expect from a high-end cabinet saw, in the compact design of a contractor-style machine. The redesigned transparent blade guard has independent leaves, and the quick release riving knife reduces chance of kickback. A low profile riving knife is included for non-through cuts. The exclusive ProShop fence system is available in 30 or 52 rip capacity.

"The JPS-10 1.75 HP 115V 30"" Proshop Tablesaw Cast wings"

Features & Benefits

  • Convenient, magnetic paddle switch for the safest operation possible
  • CSA Certified
  • Improved dust shroud around blade for greater dust collection
  • Innovative single belt design for easier belt tensioning and reduced vibration
  • Low profile riving knife included
  • Motor reset switch conveniently relocated to the power switch, instead of the motor
  • Newly designed arbor lock to change blades quickly and easily
  • On board storage for all included accessories
  • Quick release riving knife for hassle free riving knife changes
  • Redesigned guard for better protection and ease of use
SAP EAN Number Code (UPC)731325727487
Model NumberJPS-10
SAP Base Unit of MeasureEA
SAP Commodity Code8465.91.0078
SAP Country of OriginTaiwan
Warranty5 Year
SAP Delivery PlantJNA
SAP Length60
SAP Unit of DimensionIN
SAP Height43
SAP Unit of DimensionIN
SAP Width40
SAP Unit of DimensionIN
SAP Gross Weight301.6
SAP Weight UnitLBS
SAP Net weight275.8
SAP Weight UnitLBS
SAP Transportation GroupParcel
Accessories Products708118,709209,725004
Arbor Speed (RPM)4000
Blade Diameter (In.)10
Dust Collection Minimum CFM Required (CFM)350
Dust Port Outside Diameter (In.)4
End User SellableNo
Item Display Order5.0000
Maximum Depth of Cut at 45 Degrees (In.)2-1/8
Maximum Depth of Cut (In.)3-1/8
Maximum Diameter of Dado (In.)8
Maximum Rip Left of Blade (In.)13-1/2
Maximum Rip Right of Blade (In.)30
Maximum Width of Dado (In.)13/16
Miter Gauge TypeT-Slot with Stops
Motor Amps14.8
Motor Phase1
Motor Power (HP)1-3/4
Motor Voltage (V.)115
Prewired Voltage (V.)115
Prop 65Cancer and Reproductive Harm
Recommended Circuit Size (Amps.)20
Style (Type)Contractor
Table Height from Floor (In.)34-3/4
Table in Front of Saw Blade at Maximum Depth of Cut (In.)8.81
Table Size (L x W) (In.)20 x 27
Table TypeCast Iron

Part #: 725000K

Price: $2,099.99
