XACTASAW DELUXE 5HP, 1PH, 50" RIP

Table Saws

<< Back

XACTASAW DELUXE 5HP, 1PH, 50" RIP
XACTASAW DELUXE 5HP, 1PH, 50" RIPXACTASAW DELUXE 5HP, 1PH, 50" RIPXACTASAW DELUXE 5HP, 1PH, 50" RIP
XACTASAW DELUXE 5HP, 1PH, 50" RIPXACTASAW DELUXE 5HP, 1PH, 50" RIPXACTASAW DELUXE 5HP, 1PH, 50" RIP

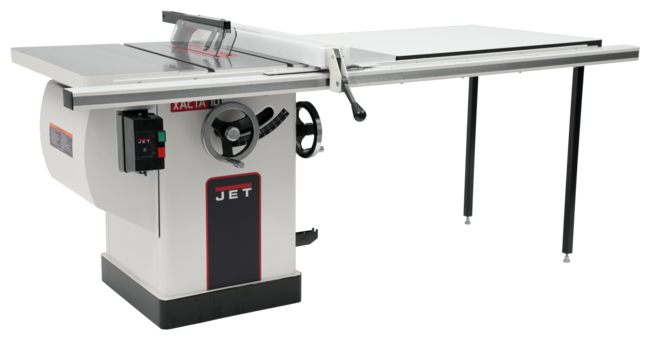

If you've ever wondered about what a table saw can really do, look no further. Introducing the JET 10" Deluxe XACTA saw. The quick release riving knife and integrated arbor lock keeps the operator safe and more efficient. The Deluxe XACTA saw offers an upgraded Poly-V belt drive system for smooth operation and optimal power transfer, a fully shrouded blade for highly efficient dust collection. The 26" x 30" wings and deeper table gives you even more cast iron to work on. A built-in 12.5" x 18" x 4" storage drawer sealed from the cabinet keeps your necessities within arms reach, and also includes an on-board fence and miter gauge storage.

Deluxe Xacta Saw 5HP, 1Ph, 50" RIP

Features & Benefits

  • Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters
  • Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement
  • Hinged motor cover on cabinet gives quick access to the motor and belts
  • Independent leaf safety guard protects operator from blade while cutting, even at 45 tilt
  • Left and right cast iron extension wings
  • Powder coated paint for a long-lasting, chip-resistant finish
  • Precision ground high luster cast iron table tops with front edge bevel for hassle-free workpiece positioning
  • Rail-mounted magnetic switch is easy to reach and provides overload protection
  • Wide stance heavy-duty trunnion for stability and smooth blade positioning
SAP EAN Number Code (UPC)662755941078
Model NumberJTAS-10XL50-5/1DX
SAP Base Unit of MeasureEA
SAP Commodity Code8465.91.0036
SAP Country of OriginTaiwan
Warranty5 Year
SAP Delivery PlantJNA
SAP Length85
SAP Unit of DimensionIN
SAP Height38
SAP Unit of DimensionIN
SAP Width36
SAP Unit of DimensionIN
SAP Gross Weight510
SAP Weight UnitLBS
SAP Weight UnitLBS
SAP Transportation GroupLTL
Accessories Products708097,708118,708119,708158,708295,708307,708325,708401,708682,708683,708684,708930Z,708950Z,708951Z,709209
Blade Diameter (In.)10
Dust Collection Minimum CFM Required (CFM)350
Dust Port Outside Diameter (In.)4
End User SellableNo
Item Display Order180.0000
Maximum Depth of Cut at 45 Degrees (In.)2-1/8
Maximum Diameter of Dado (In.)8
Maximum Rip Right of Blade (In.)50
Maximum Width of Dado (In.)13/16
Miter Gauge TypeDeluxe
Motor Amps18
Motor Power (HP)5
Motor Voltage (V.)230
Prewired Voltage (V.)230
Prop 65Cancer and Reproductive Harm
Style (Type)Cabinet
Table in Front of Saw Blade at Maximum Depth of Cut (In.)10
Table Size (L x W) (In.)29 x 20
Table TypeCast Iron

Part #: 708677PK

Price: $3,849.99
