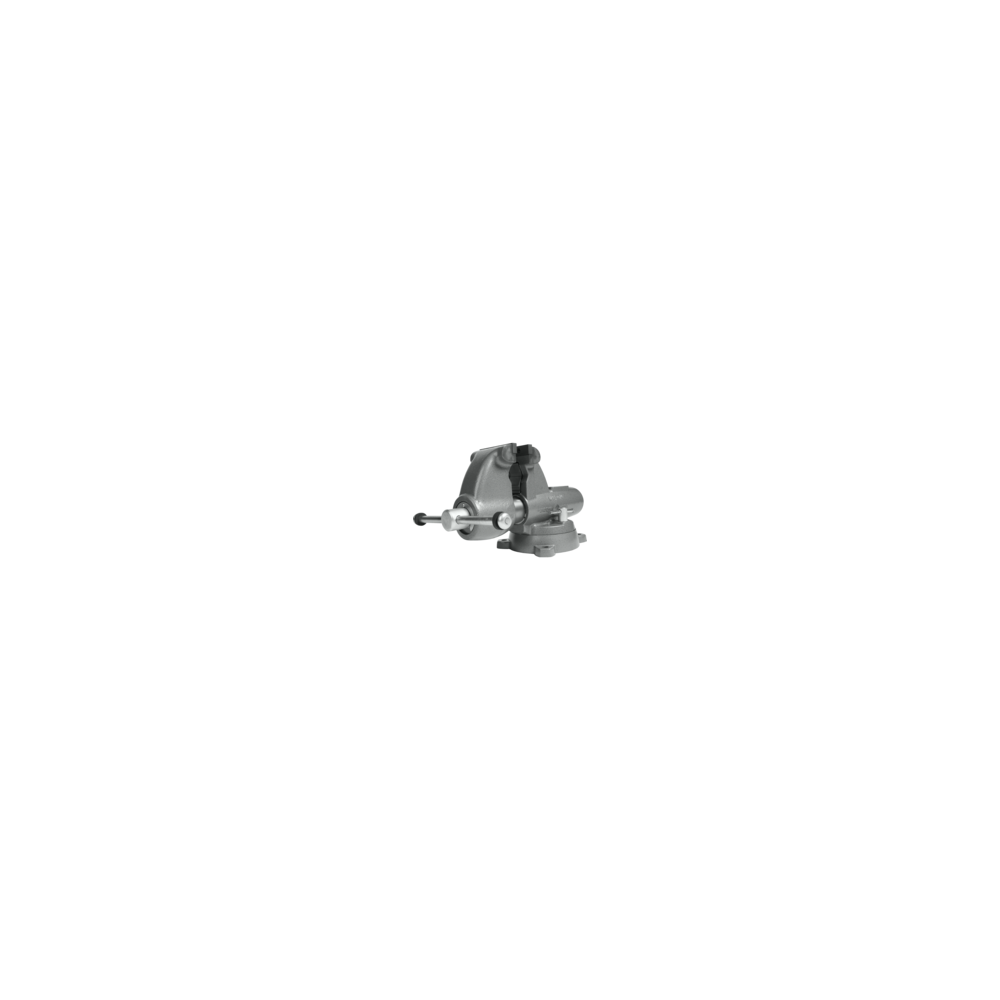

C2 WILTON COMBO PIPE & BENCH VISE 5 IN

C2 WILTON COMBO PIPE & BENCH VISE 5 IN

AB28827
$1,821.99

C2 WILTON COMBO PIPE & BENCH VISE 5 IN

Proudly made in the USA, the Combination Pipe and Bench round channel vise is designed to handle the most demanding clamping applications. Unlike most vises that have a fixed center nut, the Combination Pipe and Bench round channel vise nut is anchored at the rear which provides straight line pull and even pressure resulting in greater durability. The round channel design also allows for a completely enclosed spindle and nut assembly keeping debris out and lubrication in for a lifetime of smooth operation. For ultimate versatility, the Combination Pipe and Bench vise is equipped with main jaws, pipe jaws and a machined anvil work surface.

Combination Pipe And Bench 5 Jaw Round Channel Vise with Swivel Base

Features & Benefits

  • Hardened steel replaceable jaw inserts are machine serrated for a safe and secure grip under maximum torque
  • Large anvil designed to take a beating while forming and shaping materials
  • Locking swivel base with double lockdowns for non-slip hold in any position
  • Longer spindle nut ensures smooth movement and a stronger straight-line pull
  • Massive cast iron vise body is virtually indestructible, weighing up to 30% more than competing models
  • Precision slide bar eliminates movement in the front jaw regardless of opened distance
  • Replaceable steel pipe jaws hold up to 6" pipe safely and securely
  • Sealed construction keeps lubrication in and contaminants out for a lifetime of smooth operation
SAP EAN Number Code (UPC) 731325760439
Model Number C-2
SAP Base Unit of Measure EA
SAP Commodity Code 8205.70.0060
SAP Country of Origin USA
Warranty Lifetime
SAP Delivery Plant JNA
SAP Length 24.5
SAP Unit of Dimension IN
SAP Height 15.5
SAP Unit of Dimension IN
SAP Width 11.5
SAP Unit of Dimension IN
SAP Gross Weight 115.7
SAP Weight Unit LBS
SAP Net weight 109.875
SAP Weight Unit LBS
SAP Transportation Group LTL
Accessories Products 14830,14836,14842,14848,21111,24407
End User Sellable No
Item Display Order 110.0000
Jaw Depth (In.) 5/8
Jaw Height (In.) 1
Jaw Width (In.) 5
Opening Capacity Max (In.) 7-7/8
Pipe Jaw # (English United States, Ecommerce) 2900830
Prop 65 Cancer
Serrated Jaw Inserts # 2903240
Throat Depth (In.) 5-1/2
Type of Base 360 Degree Swivel
AB28827

Data sheet

Package Type
BOX
Default Qty
1
