JPM-13CS 13" PLNR/MLDR DELUX (TEXT)

JPM-13CS 13" PLNR/MLDR DELUX (TEXT)

AB708524
$2,439.99

JPM-13CS 13" PLNR/MLDR DELUX (TEXT)

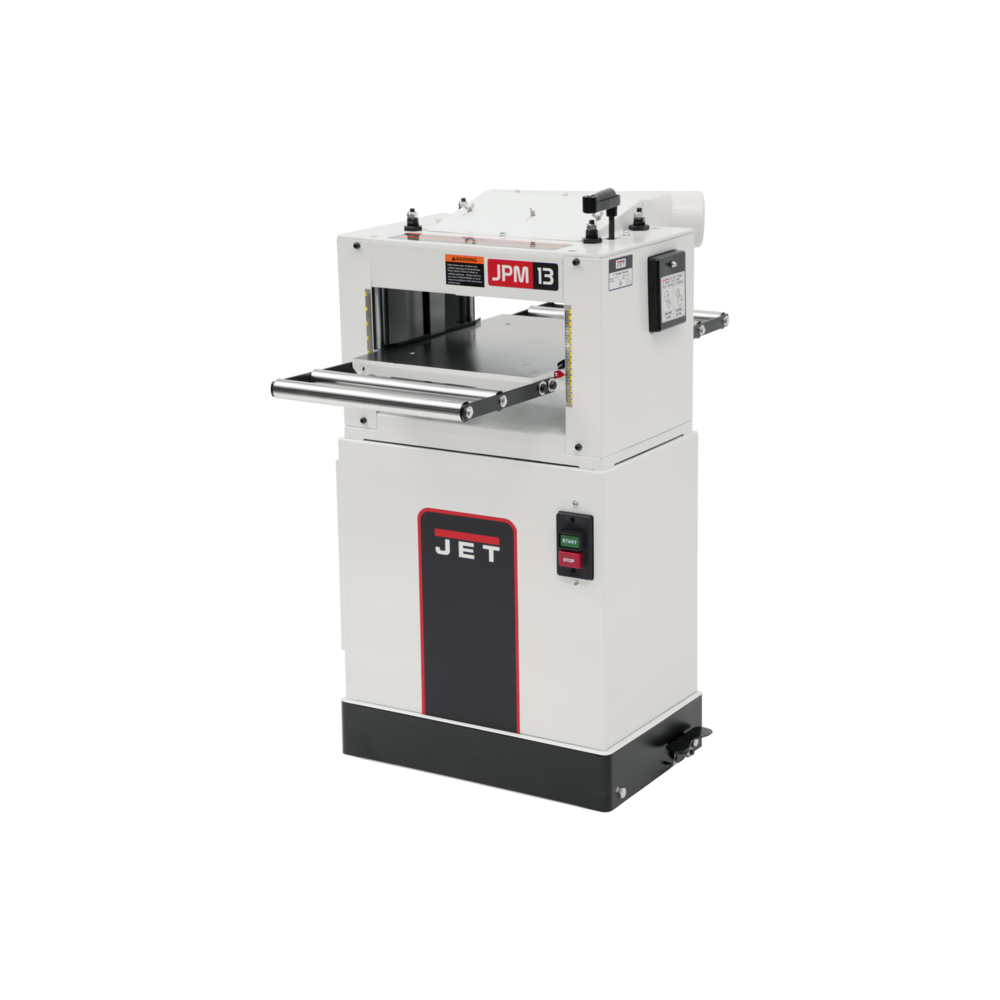

The JET JPM-13CS 13" Closed Stand Planer / Molder boasts a totally enclosed fan-cooled 1.5 HP motor which uses two matched V-belts to deliver smooth, consistent power to the cutter head. The sturdy cast iron table and base provide strength and reduce vibration during use. The Three cutter head design produces a superior finish in either application. Built in lockable caster add support and stability to the machine while allowing it to be maneuverable.

JPM-13CS, 13" Closed Stand Planer / Molder, 1-1/2HP, 1Ph, 115/230V

Features & Benefits

  • Exclusive angled 4" dust port keeps the dust hose out of the way while providing efficient chip and dust removal
  • Four precision-ground column design feature adds stability when raising and lowering the table
  • Infeed and outfeed rollers are adjustable and rubber-coated to support your workpiece without marring the wood
  • Molding cutter head accommodates over 40 standard molding cutter sets; most 2" or smaller heads can be installed without removing the planning knives to save you set-up time
  • Top-mounted height adjustment handle is easy to use for quick table height changes
  • Two speed gear box has feed rates set for optimum planing and molding results
SAP EAN Number Code (UPC) 662755171147
Model Number JPM-13CS
SAP Base Unit of Measure EA
SAP Commodity Code 8465.92.0034
SAP Country of Origin Taiwan
Warranty 5 Year
SAP Delivery Plant JWA
SAP Unit of Dimension IN
SAP Unit of Dimension IN
SAP Unit of Dimension IN
SAP Gross Weight 258
SAP Weight Unit LBS
SAP Net weight 258
SAP Weight Unit LBS
SAP Transportation Group LTL
Accessories Products 708118,708361,708366,709209
Cutterhead Speed (RPM) 4500.0000
Dust Port Outside Diameter (In.) 4
End User Sellable No
Feed Rate - Molding (FPM) 10
Maximum Planing Thickness (In.) 6-1/8
Motor Amps 15/7.5
Motor Power (HP) 1-1/2
Number of Knives 3
Prewired Voltage (V.) 115
Prop 65 Cancer and Reproductive Harm
Style (Type) Planer/Molder
AB708524

Data sheet

Package Type
BOX
Default Qty
1
