High Pressure Single Stage Piston Regul

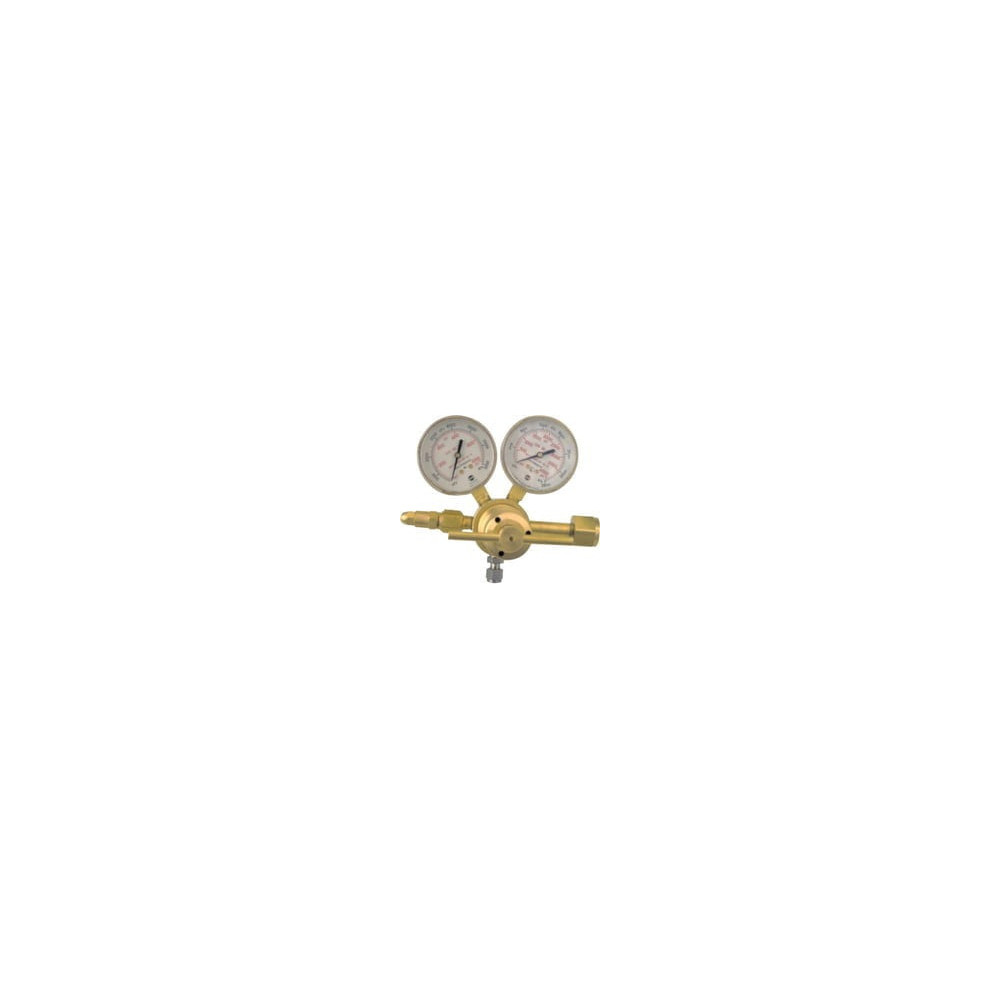

High Pressure Single Stage Piston Regulators, Inert Gas, CGA580, 3,000 psig
High Pressure Single Stage Piston Regulators, Inert Gas, CGA580, 3,000 psig
- High pressure
- Dead-end testing
- May be panel mounted
- Single stage design
- Piston type actuation
- All SR 4 series regulators have a swaged lock type stainless steel outlet fitting
- Cartridge type seat assembly with PCTFE seat
- Delrin® cap bushing for smooth adjustments
- External adjustable relief valves on F and G range models
- Hydrogen models have ventable relief valves
| Body Material | Machined Brass |
| Depth [Nom] | 6 1/4 in |
| Filter Material | Bronze; Sintered |
| Flow Range | 100 - 1500 psig |
| Gas Type | Inert Gas |
| Height [Nom] | 6 1/2 in |
| Inlet Connection | CGA 580 |
| Inlet Pressure [Max] | 3,000 psig |
| Length [Nom] | 6 in |
| Outlet Pressure [Max] | 1,500 psig |
| Outlet Pressure [Min] | 100 psig |
| Outlet Size | 1/4 in |
| Outlet Type | Swagelok® |
| Width [Nom] | 6 in |
| Wt. | 4 lb |
AB341-0781-1428
Data sheet
- Package Type
- BOX
- Default Qty
- 1
