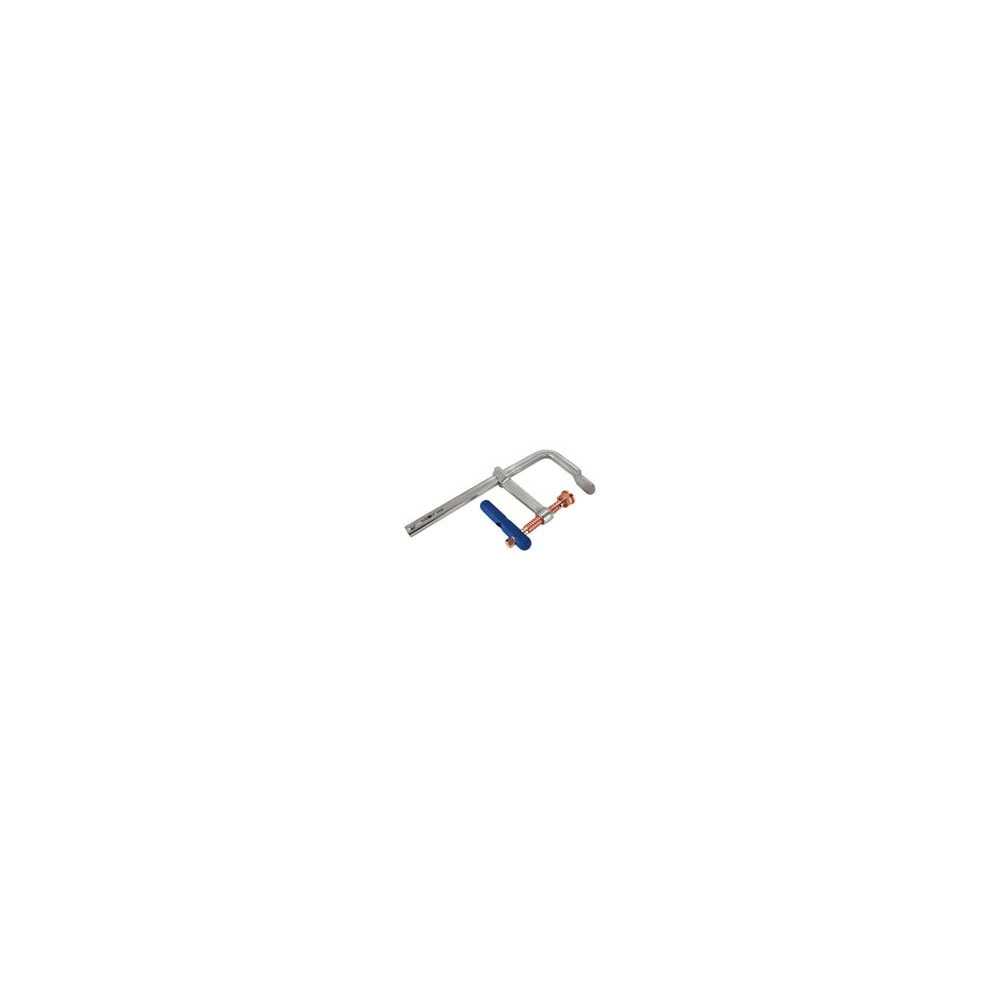

2400S-8C, 8" REGULAR DUTY F-CLAMP COPPE
2400S-8C, 8" REGULAR DUTY F-CLAMP COPPER
2400S-8C, 8" REGULAR DUTY F-CLAMP COPPER
Features & Benefits
- Spark-Duty copper-plated spindle extends the life of the clamp by protecting the spindle and pad from harmful welding spatter.
- Quick-Twist Pads are simple and fast to replace with a V-Groove pad included in every box, or optional serrated pad.
- Drop forged arm provides minimal flex under heavy work loads.
| UPC | 731325228311 |
| SAP Material Group | 140P |
| SAP Material Type | ZFIN |
| SAP Warranty | Lifetime |
| Model Number | 2400S-8C |
| SAP Owner | WWH |
| SAP Division | 96 |
| SAP Country of Origin | TW |
| SAP Product Category | WH |
| SAP Rounding Profile | NA |
| SAP Height | 2.000 |
| SAP Length | 14.000 |
| SAP Volume | 1.377 |
| SAP Width | 8.500 |
| Prop 65 | Cancer and Reproductive Harm |
| Quick-Twist V-Groove Pad Stock Number | 2909302 |
| Quick-Twist Plain Pad Stook Number | 2909102 |
| Quick-Twist Serrated Pad Stock Number | 2909202 |
| Nut Stock Number | 1701702 |
| Spindle and T-Handle with Spring Pin Stock Number | 1701602 |
| Joint with Spring Pin Stock Number | 1701502 |
| Spindle Diameter | 3/4 |
| Clamping Capacity (in) | 8 |
| Nominal Rail Size (in) | 1-3/16 x 19/32 |
| Clamping Force (lbs) | 2660 |
| Quick-Twist Pads | Yes |
| Throat Depth (in) | 5-1/2 |
AB86400
Data sheet
- Package Type
- BOX
- Default Qty
- 1
