Introducing the PWBS-14CS Bandsaw. It has an extra large, two-piece cast iron table. It consists of a 15" x 15" tilting section and a fixed 15" x 5" extension for a total working surface area of 15" x 20". A balanced, nine-spoke cast iron wheel makes for smooth blade travel, and a Carter quick tension release lever makes blade changing easy. A micro-adjustable dual bearing blade guide system is featured above and below the table, as well as a work lamp and chip blower. A Poly-V belt maximizes power transmission while minimizing noise and vibration. It has full 6" under guide capacity with 13-1/2" frame to blade clearance. The aluminum rip fence comes with a resaw attachment.

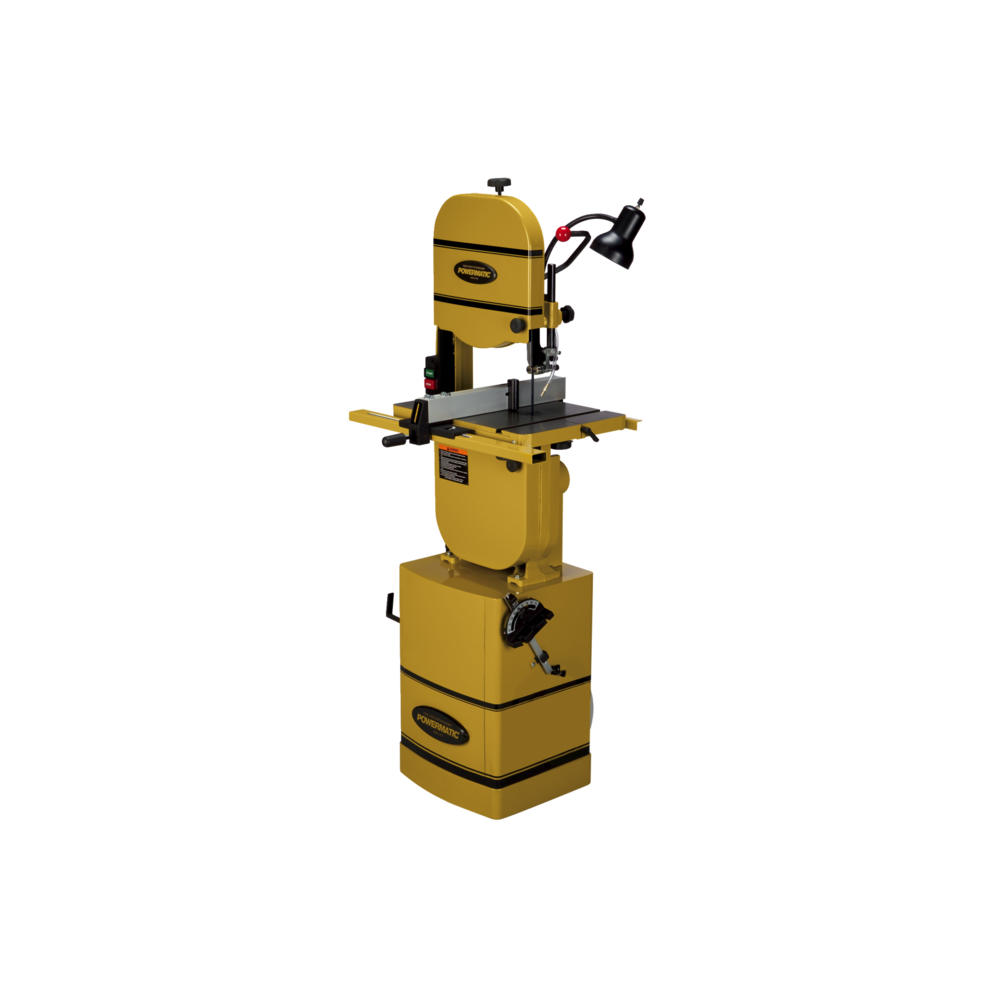

PWBS-14CS 14" Bandsaw with Stand and Riser Block
Features & Benefits
- 60 watt adjustable lamp built into the body provides direct light on blade and work piece while cutting (bulb not included)
- Carter quick tension lever speeds blade changes and the detension setting extends blade life during non-use
- Chip blower ensures a clean, visible cut line
- Durable micro-adjustable dual bearing blade guide system above and below the table for close blade control with less friction
- Easy to read tensioning gauge settings indicated in "blade width" increments
- Exclusively designed, quick-release precision T-square style rip fence with 4" resaw attachment
- Includes 6" riser block
- Precision balanced nine spoke cast iron wheels reduces vibration and creates smoother blade travel
- Rigid one-piece welded stand requires no assembly
- Upper and lower dual ball bearing guides for accurate cuts
| SAP EAN Number Code (UPC) |
662755489372 |
| Model Number |
PWBS-14CS |
| SAP Base Unit of Measure |
EA |
| SAP Commodity Code |
8465.91.0064 |
| SAP Country of Origin |
Taiwan |
| Warranty |
5 Year |
| SAP Delivery Plant |
JNA |
| SAP Length |
20 |
| SAP Unit of Dimension |
IN |
| SAP Height |
68 |
| SAP Unit of Dimension |
IN |
| SAP Width |
34 |
| SAP Unit of Dimension |
IN |
| SAP Gross Weight |
266 |
| SAP Weight Unit |
LBS |
| SAP Net weight |
250 |
| SAP Weight Unit |
LBS |
| SAP Transportation Group |
LTL |
| Accessories Products |
2042377 |
| Band Saw Size/Wheel Diameter (In.) |
14 |
| Blade Length (In.) |
93-1/2 |
| Blade Speed (SFPM) |
3000 |
| Dust Collection Minimum CFM Required (CFM) |
600 |
| Dust Port Outside Diameter (In.) |
4 |
| End User Sellable |
No |
| Item Display Order |
1.0000 |
| Minimum Saw Blade Width (In.) |
1/8 |
| Motor Phase |
1 |
| Motor Power (HP) |
1.5 |
| Prewired Voltage (V.) |
115 |
| Prop 65 |
None |
| Table Height from Floor (In.) |
44 |
