If space is at a premium in your shop, this is the bandsaw for you. The compact benchtop design allows for easy transport to different shop locations, while the Poly-V drive system provides maximum power transfer from motor to blade and reduces vibration. With quick release blade tension, upper and lower ball bearing blade guides, an extra-large cast iron tilting table, and an easily adjustable LED work light, this well-equipped bandsaw has all the features you're used to on bigger bandsaws.

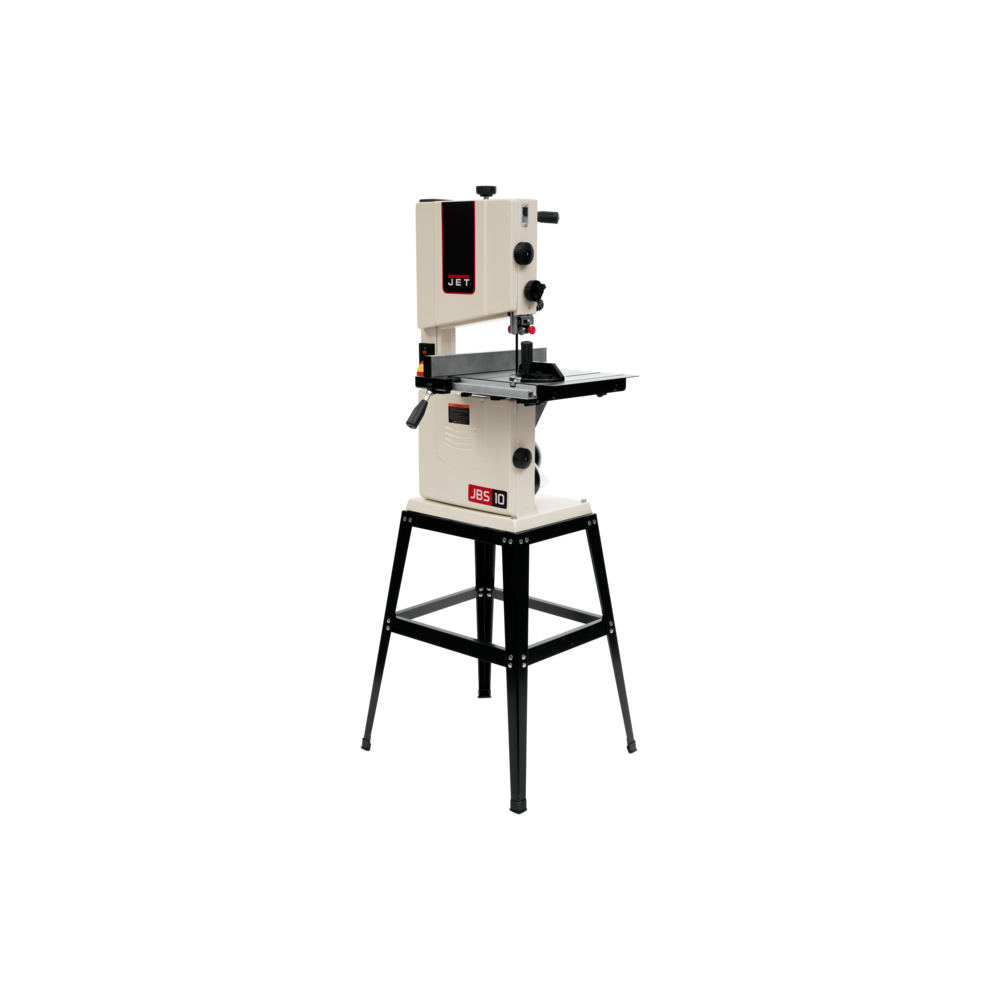

JWB-10, 10" Open Stand Bandsaw
Features & Benefits
- Aluminum extruded fence ensures smooth sliding action
- Blade site window to view blade tracking
- Dust port accepts multiple size hoses
- Extra large cast iron table with retractable extension wing provides additional work piece support
- Magnifying cursor enlarges measurement scale for precise fence location
- One piece welded frame design reduces machine vibration and flex
- Oversized, ergonomic knobs provide ease of use and maximum control
- Rack and pinion blade guide adjustment with integrated locking knob for precise height control
- Rigid steel stand allows bandsaw to transition from the benchtop to the floor
- Table tilting trunnion allows working angles from 0 to 45
| SAP EAN Number Code (UPC) |
731325455878 |
| Model Number |
JWB-10 |
| SAP Base Unit of Measure |
EA |
| SAP Commodity Code |
8465.91.0053 |
| SAP Country of Origin |
China |
| Warranty |
5 Year |
| SAP Delivery Plant |
JNA |
| SAP Unit of Dimension |
IN |
| SAP Unit of Dimension |
IN |
| SAP Unit of Dimension |
IN |
| SAP Gross Weight |
92 |
| SAP Weight Unit |
LBS |
| SAP Net weight |
83 |
| SAP Weight Unit |
LBS |
| SAP Transportation Group |
LTL |
| Band Saw Size/Wheel Diameter (In.) |
10 |
| Cutting Capacity Height (In.) |
4.0000 |
| Cutting Capacity Height (In.) (Unit) |
Inch |
| End User Sellable |
No |
| Item Display Order |
10.0000 |
| Minimum Saw Blade Width (In.) |
1/8 |
| Motor Amps |
3.4 |
| Motor Power (HP) |
1/2 |
| Motor Voltage (V.) |
115 |
| Prop 65 |
Cancer and Reproductive Harm |
| Table Height from Floor (In.) |
41-1/2 |
| Table Size (L x W) (In.) |
13-1/8 x 13-3/8 |
|
