PM2244 DRUM SANDER, 1-3/4HP

At Powermatic, we know our woodworkers expectations are high when it comes to their machines. With that in mind, when we engineer a new product, we are continuously working to improve the woodworkers capabilities while simultaneously enhancing their experience. That is why we are proud to introduce the PM2244 Drum Sander. The PM2244 will exceed your expectations with its world-class design, usability and sophistication.

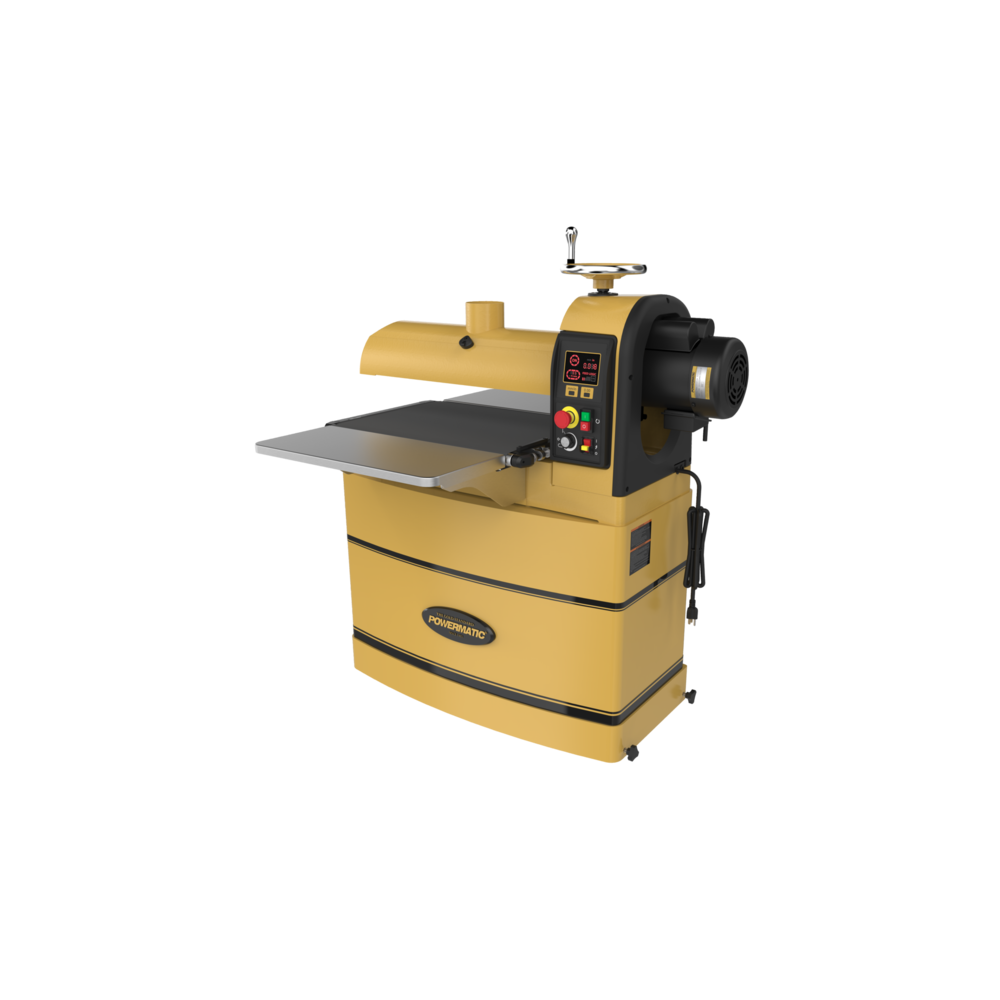

PM2244 Drum Sander, 1-3/4HP, 115V

Features & Benefits

  • Belt tracking is designed to reduce the need for manual adjustment
  • Closed stand with storage for keeping abrasives organized
  • Drum carriage is designed to provide strength and consistent performance over time
  • Emergency stop for quick shutoff
  • Included infeed/outfeed tables provide 37-1/2 inches of support for the workpiece
  • Integrated casters make it easy to move unit around the shop
  • Integrated LED Control Panel shows power, belt speed, and DRO
  • Large, chrome handwheel makes adjusting the drum height smooth and simple
  • Table parallelism is adjusted with a dial on the outside of the conveyor bed, eliminating adjustments to the entire drum carriage
  • The feed logic system monitors the load on the drum motor and regulates the speed of the conveyor motor to maintain the highest feed rate without overload
SAP EAN Number Code (UPC) 731325436051
Model Number PM2244
SAP Base Unit of Measure EA
SAP Commodity Code 8465.93.0075
SAP Country of Origin Taiwan
Warranty 5 Year
SAP Delivery Plant JNA
SAP Length 45.6
SAP Unit of Dimension IN
SAP Height 50.25
SAP Unit of Dimension IN
SAP Width 23
SAP Unit of Dimension IN
SAP Gross Weight 418
SAP Weight Unit LBS
SAP Net weight 328
SAP Weight Unit LBS
SAP Transportation Group LTL
Accessories Products 1792201,1792202,1792203,1792204,1792205,1792206,1792207,1792208
Drum Diameter (In.) 5
Drum Length (In.) 22
Dust Collection Minimum CFM Required (CFM) 800
Dust Port Outside Diameter (In.) 4
End User Sellable No
Item Display Order 1.0000
Maximum Board Thickness (In.) 4
Minimum Board Length (In.) 2-3/8
Minimum Board Thickness (In.) 1/32
Motor Power (HP) 1-3/4
Number of Sanding Drums 1
Prop 65 Cancer and Reproductive Harm
Recommended Circuit Size (Amps.) 20
Suggested Products 1791290,1791320,1791321
AB1792244

Data sheet

Package Type
BOX
Default Qty
1
