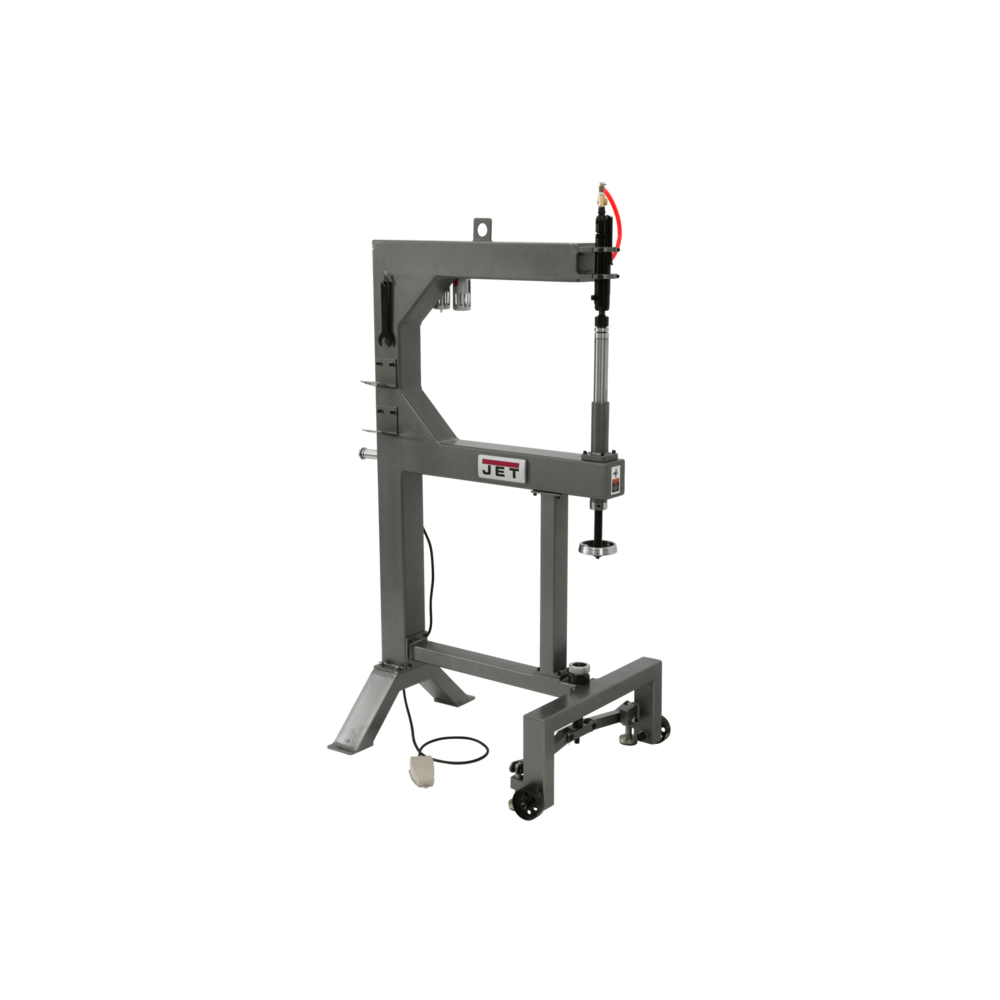

PH-24 24" PLANISHING HAMMER

PH-24 24" PLANISHING HAMMER

AB756121
$2,349.00

PH-24 24" PLANISHING HAMMER

JETs 24 Planishing Hammer has a quick change set up on the upper dies and a deep throat that works to the middle of most panels. The head with 3-speed regulator is capable of 4,400 4,800 / 3,200 3,500 / 1,800 2,000 blows-per minute (BPM). Easy to-reach, adjustable flow control valve allows the user to deliver the proper BPM needed for any job. Operates on standard shop air.

PH-24T, 24" Planishing Hammer

Features & Benefits

  • 3-Position airflow regulates speeds of pneumatic hammer
  • Machine controlled with 110V AC foot control
  • Machine supplied with a pair of upper and anvil dies
  • Quick change of upper dies
  • Retractable handle makes machine easy to move around the shop
  • Smooths beads and forms aluminum and copper up to 1/8 in. thick
  • Smooths beads and forms mild steel sheet metal up to 16 Gauge
  • Wider base support to prevent movement of machine while in use
SAP EAN Number Code (UPC) 731325178043
Model Number PH-24T
SAP Base Unit of Measure EA
SAP Commodity Code 8462.29.0020
SAP Country of Origin China
Warranty 2 Year
SAP Delivery Plant JNA
SAP Length 33.5
SAP Unit of Dimension IN
SAP Height 61
SAP Unit of Dimension IN
SAP Width 30
SAP Unit of Dimension IN
SAP Gross Weight 250
SAP Weight Unit LBS
SAP Net weight 220
SAP Weight Unit LBS
SAP Transportation Group LTL
3-Speed Regulator (Hits Per Min.) 4,400 - 4,800 / 3,200 - 3,500 / 1,800 - 2,000
30 Point inspection JET 30 Point
Air Consumption (CFM) 8.8000
End User Sellable No
Frame Tube Sizes (In.) 4 x 4
Head Opening (In.) 2-1/2
Item Display Order 1.0000
Maximum Pressure (PSI) 90
Prop 65 Cancer and Reproductive Harm
Weight (Lbs.) 220.0000
Weight (Lbs.) (Unit) Pound
AB756121

Data sheet

Package Type
BOX
Default Qty
1
