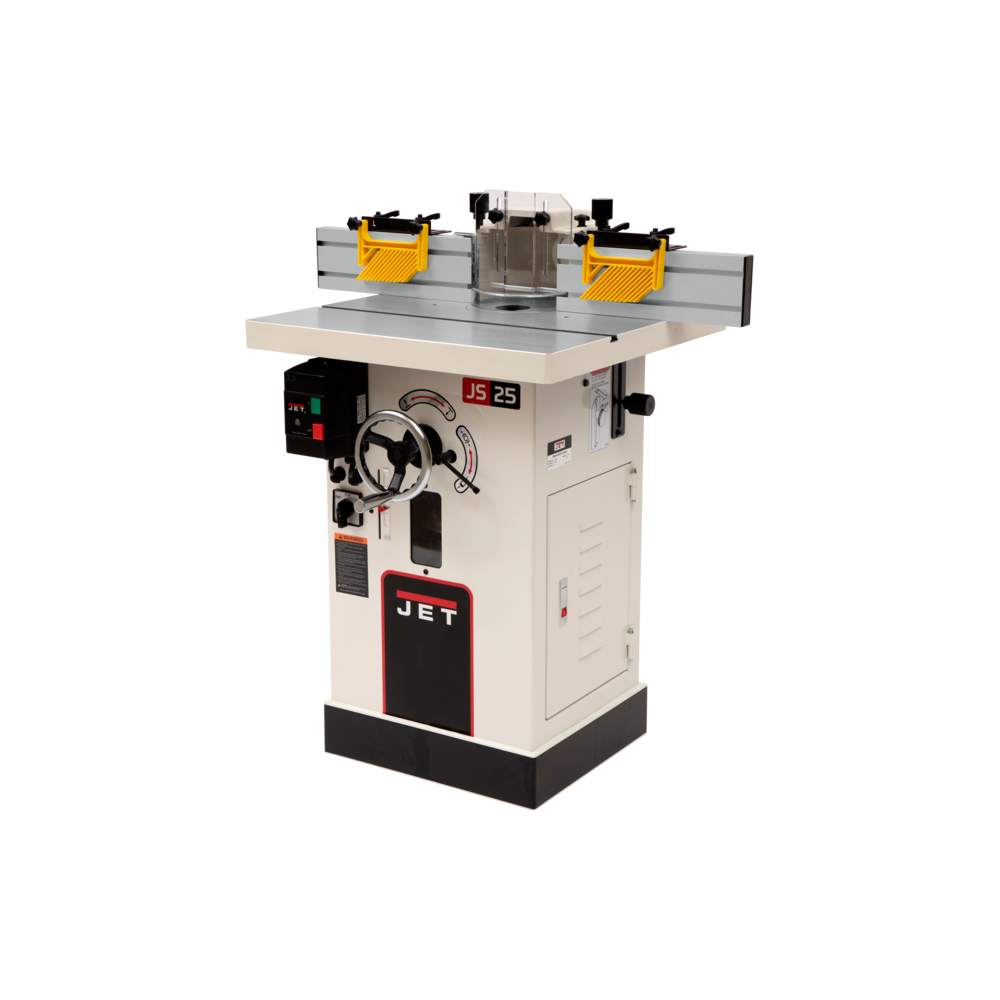

JWS-25X JET SHAPER 3HP, 1PH

JWS-25X JET SHAPER 3HP, 1PH

AB708309
$2,799.99

JWS-25X JET SHAPER 3HP, 1PH

The new model JWS-25X Shaper features a powerful 3HP motor with magnetic controls. The large 25x 25-1/2 precision ground cast iron table provides plenty of support. Safe, easy cutter set up is assisted by a positive detent spindle lock. The independently adjustable left and right fence has a built in 4 dust port.

JWS-25X, JET Shaper, 3HP, 1PH

Features & Benefits

  • Extra large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
  • Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
  • Reversible spindle speeds for diverse shaping jobs
  • Spindle lock for safe and easy cutter set up
  • Starting Pins for irregular shaping
  • Two-speeds let you select the best speed and torque for different cutter diameters
  • V-belt transfers maximum power to the spindle
SAP EAN Number Code (UPC) 662756003942
Model Number JWS-25X
SAP Base Unit of Measure EA
SAP Commodity Code 8465.92.0062
SAP Country of Origin Taiwan
Warranty 5 Year
SAP Delivery Plant JNA
SAP Length 43
SAP Unit of Dimension IN
SAP Height 23
SAP Unit of Dimension IN
SAP Width 25
SAP Unit of Dimension IN
SAP Gross Weight 381
SAP Weight Unit LBS
SAP Net weight 331
SAP Weight Unit LBS
SAP Transportation Group LTL
Accessories Products 708118,708318,708382,708383,708384,708387,708388
Dust Collection Minimum CFM Required (CFM) 600
Dust Port Outside Diameter (In.) 4
End User Sellable No
Item Display Order 3.0000
Motor Amps 16
Motor Power (HP) 3
Motor Voltage (V.) 230
Prewired Voltage (V.) 230
Prop 65 Cancer and Reproductive Harm
Recommended Circuit Size (Amps.) 30
Spindle Travel (In.) 3-1/2
Table Height from Floor (In.) 33
Table Inserts (In.) 2
Table Opening Diameter (In.) 6-9/32
Table Size (L x W) (In.) 25-1/2 x 25
AB708309

Data sheet

Package Type
BOX
Default Qty
1
