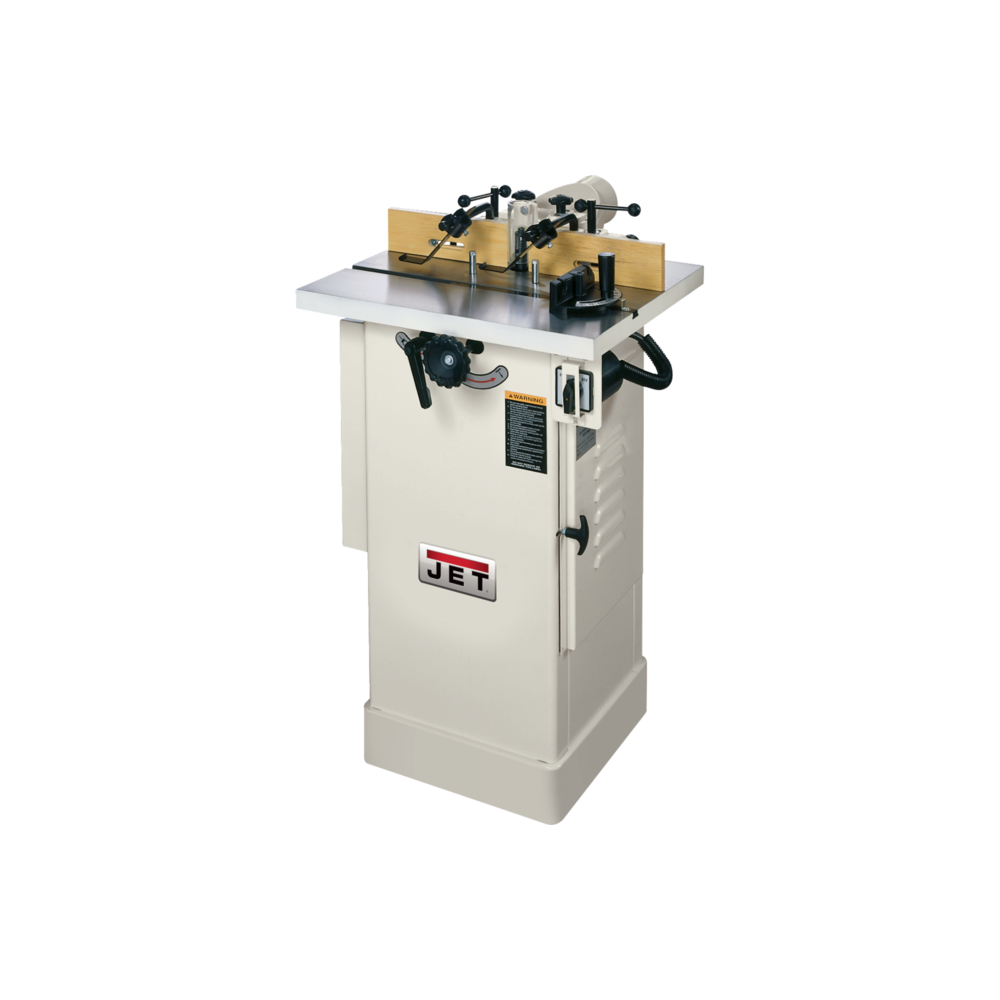

JWS-22CS, 1-1/2HP Shaper, 1Ph 115/230V, 1/2" and 3/4" Spindle
Features & Benefits
- Starting Pins for irregular shaping
- Forward/reverse switch for left and right hand operation
- Two reversible spindle speeds lets you select the best speed and torque for different cutter diameters
- Independent left and right fences feature micro-adjustment and have zero-clearance capability
- Extra-large handwheel is conveniently located for fast, easy and accurate spindle height adjustments
- Positive detent spindle lock allows safer, easy cutter set-up
- 4" dust port connects to your collection system to keep your workplace dust and debris-free
- Fully enclosed, heavy-duty steel stand has a removable cover for easy motor access
- 1/2" and 3/4" interchangeable spindles and router bit collets for use with shaper cutter and router bits
| UPC |
662755171109 |
| SAP Material Group |
WW150 |
| SAP Material Type |
ZFIN |
| SAP Warranty |
5 Year |
| Model Number |
JWS-22CS |
| SAP Owner |
MWW |
| SAP Country of Origin |
TW |
| SAP Product Category |
WW |
| SAP Rounding Profile |
NA |
| SAP Height |
0.000 |
| SAP Length |
0.000 |
| SAP Volume |
6.848 |
| SAP Width |
0.000 |
| Prop 65 |
None |
| Spindle Size Under Nut (In.) |
1/2 (2-1/2), 3/4 (2-15/16) |
| Router Bit Collet Included |
1/4, 1/2 |
| Spindle Speed (RPM) |
7000/9000 |
| Table Opening Diameter (In.) |
5-1/4 |
| Motor Power (HP) |
1-1/2 |
| Spindles Included |
Yes |
| Motor Phase (PH) |
1 |
| Maximum Spindle Diameter (In.) |
1/2, 3/4 |
| Table T-Slot (In.) |
3/4 x 3/8 |
| Spindle Travel (In.) |
1-7/16 |
| Table Height from Floor (In.) |
33-1/2 |
| Fence Size (L x H) (In.) |
10 x 3-1/8 |
| Prewired Voltage (V.) |
115 |
| Motor Voltage (V.) |
115/230 |
| Dust Port Outside Diameter (In.) |
4 |
| Motor (amps) |
12/6 |
| Table Insert Opening Diameter (In.) |
1-5/8, 3-1/4 |
| Table Size (L x W) (In.) |
22-1/4 x 18-1/8 |
|
