PM2000B, 5HP 1PH 230V, 50" RIP

PM2000B, 5HP 1PH 230V, 50" RIP

ABPM25150K
$5,399.99

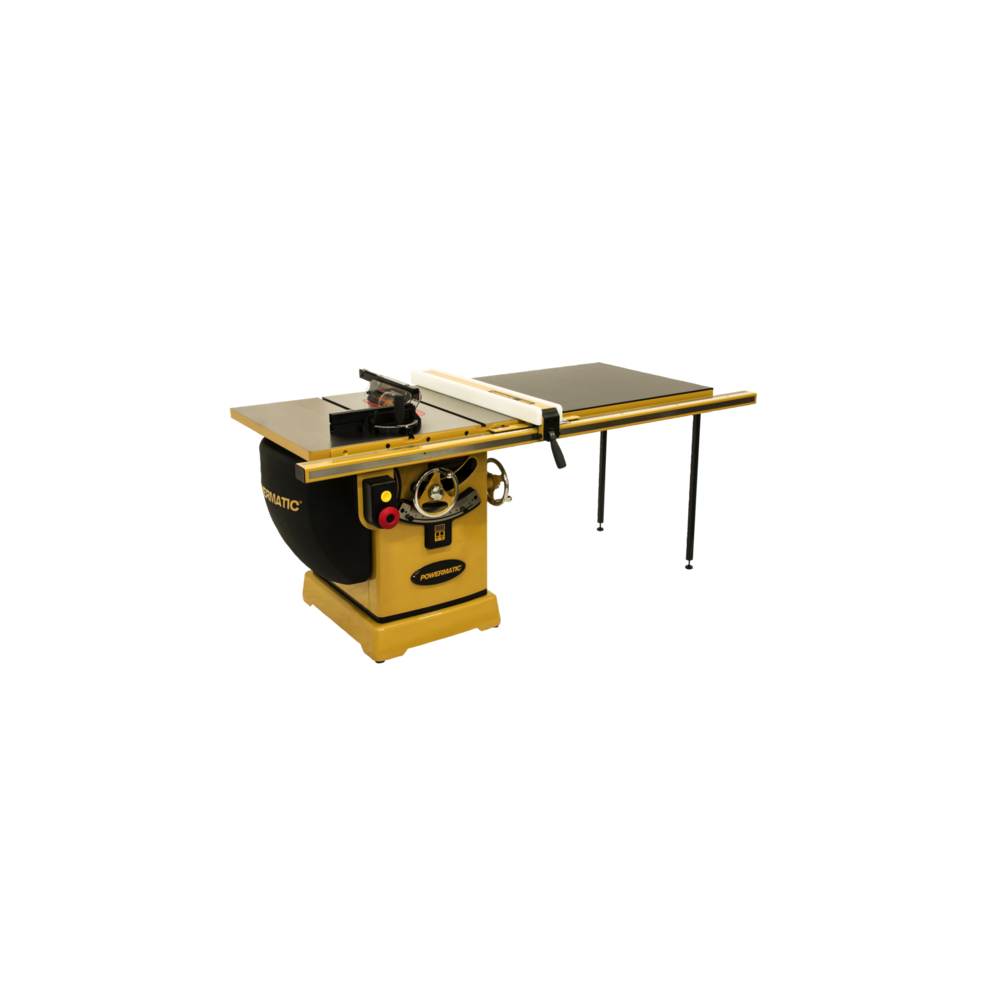

PM2000B, 5HP 1PH 230V, 50" RIP

The award winning PM2000B table saw sets a new standard for innovation with an array of patented features and massive body design. The cast iron tables are oversized, and the newly designed arbor lock lever is accessible from above the table top to eliminate the need for dual arbor wrenches. The quick-release riving knife design helps reduce the chance of kickback. The blade tilt scale features an integrated digital read out as well as adjustable angle indicators for repetitive bevel cuts. The newly designed integrated retractable hydraulic caster system mobilizes your table saw much higher than the previous model to assist when moving over thresholds. A wide stance, heavy-duty box trunnion and concave teeth on the trunnion gears promote easier raising and tilting of saw blade. Poly-V drive belt system results in quieter, more efficient power transfer from the motor to the arbor with virtually no vibration and less heat build-up. Improved built-in dust collection port with convenient access to the inside of the saw cabinet for simple clean-up. The saw has a proprietary safety switch with magnetic interlock and the stop button can be knee activated.

2000B table saw - 5HP 1PH 230V 50" RIP w/Accu-Fence

Features & Benefits

  • Adjustable angle indicators on the blade bevel scale for repeatable bevel cuts
  • Arbor lock for quick and easy blade changes
  • Integrated digital read out for precise bevel cuts
  • Integrated dust collection
  • Integrated hydraulic castor system for ease of movement around the shop
  • Matching beveled edge between table and extension wings
  • One-piece cast iron box trunnion provides the strongest stability of any Powermatic table saw
  • Precision-ground, high luster cast iron tabletops with front and rear edge bevel
  • Quick release riving knife lever for hassle free riving knife changes
SAP EAN Number Code (UPC) 731325712285
Model Number PM2000B
SAP Base Unit of Measure EA
SAP Commodity Code 8465.91.0036
SAP Country of Origin Taiwan
Warranty 5 Year
SAP Delivery Plant JNA
SAP Length 84.75
SAP Unit of Dimension IN
SAP Height 40.375
SAP Unit of Dimension IN
SAP Width 39.125
SAP Unit of Dimension IN
SAP Gross Weight 718.4
SAP Weight Unit LBS
SAP Net weight 643.8
SAP Weight Unit LBS
SAP Transportation Group Parcel
Accessories Products 1791786B,1791788B,1791791B,1791792B,1794860K,6827041B,6827045Z
Arbor Speed (RPM) 4500
Blade Diameter (In.) 10
Dust Collection Minimum CFM Required (CFM) 400
Dust Port Outside Diameter (In.) 4
End User Sellable No
Item Display Order 10.0000
Maximum Depth of Cut at 45 Degrees (In.) 2-1/8
Maximum Diameter of Dado (In.) 8
Maximum Rip Left of Blade (In.) 13-1/2
Maximum Rip Right of Blade (In.) 50
Maximum Width of Dado (In.) 13/16
Motor Phase 1
Motor Power (HP) 5
Motor Voltage (V.) 230
Prop 65 Cancer and Reproductive Harm
Recommended Circuit Size (Amps.) 30
Style (Type) Cabinet
Table Height from Floor (In.) 35
Table Type Cast Iron
ABPM25150K

Data sheet

Package Type
BOX
Default Qty
1
