JDP-17MF DP FLOOR

JDP-17MF DP FLOOR

AB354169
$1,599.99

JDP-17MF DP FLOOR

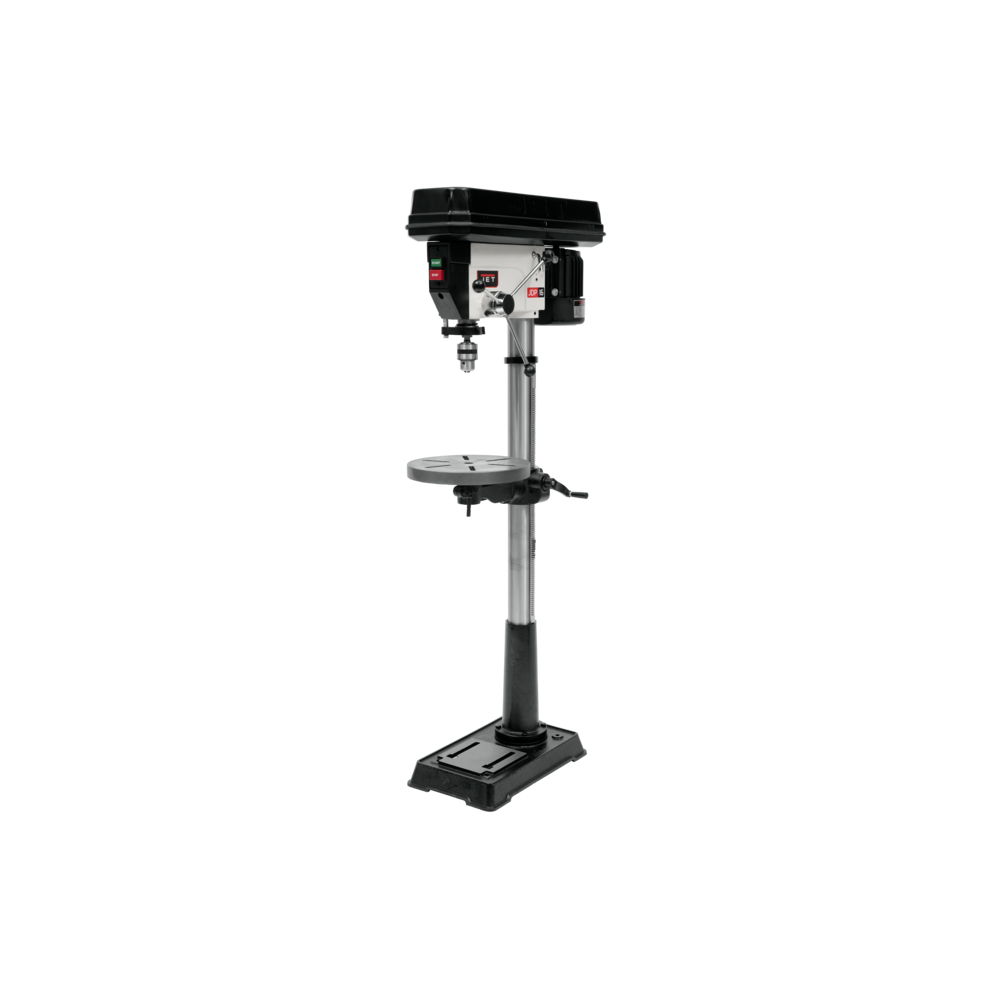

The JET JDP-17MF Floor Drill Press is a true woodworker's drill press. With 16 speeds, it lets you choose the best speed for the job. It comes equipped with a quick release crank operated worktable, work light, X-pattern mounting grooves, depth stop, and adjustable tension spindle return spring which is ideal for repetitive drilling of the same depth.

16-1/2" Drill Press

Features & Benefits

  • X pattern mounting grooves in table allow mounting a fence when table is in reverse position
  • 16 Speeds lets you choose the best speed for the job
  • Adjustable tension spindle return spring
  • Adjustable tension spindle return spring is ideal for repetitive drilling of the same depth
  • Built-in work light (bulb not included) provides additional visibility of your work
  • Depth stop displays inch/mm and has a quick set bolt for fast, accurate adjustments
  • Hinged metal belt and pulley cover
  • Hinged metal belt and pulley cover provides easy access to the quick adjustment motor mount to allow rapid spindle speed changes
  • Quick release crank operated worktable height adjustment rotates + or - 45 for versatility
  • Spindle has high-quality ball bearing construction for long life
SAP EAN Number Code (UPC) 662755104114
Model Number JDP-17MF
SAP Base Unit of Measure EA
SAP Commodity Code 8465.95.0055
SAP Country of Origin China
Warranty 5 Year
SAP Delivery Plant JNA
SAP Unit of Dimension IN
SAP Unit of Dimension IN
SAP Unit of Dimension IN
SAP Gross Weight 209
SAP Weight Unit LBS
SAP Net weight 209
SAP Weight Unit LBS
SAP Transportation Group LTL
Chuck Size (In.) 5/8
Column Diameter (In.) 3-1/8
End User Sellable No
Item Display Order 60.0000
Motor Amps 9/4.5
Motor Power (HP) 3/4
Number of Spindle Speeds 16
Prop 65 Cancer and Reproductive Harm
Spindle Distance to Table (Max.) (In.) 29-1/8
Spindle Travel (In.) 4-3/8
Style (Type) Floorstanding Model
Swing (In.) 16-1/2
Table Size (L x W) (In.) 13-3/4
AB354169

Data sheet

Package Type
BOX
Default Qty
1
