The JET JDP-15F, 15 Floor Standing Drill Press. From a full 3-1/8 of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press features a long-lasting, built-in LED work light to provide direct lighting while reducing shadows. Another feature includes the one-handed belt-tensioning system and a large 12-1/2" x 17" work table which are all CSA Certified.

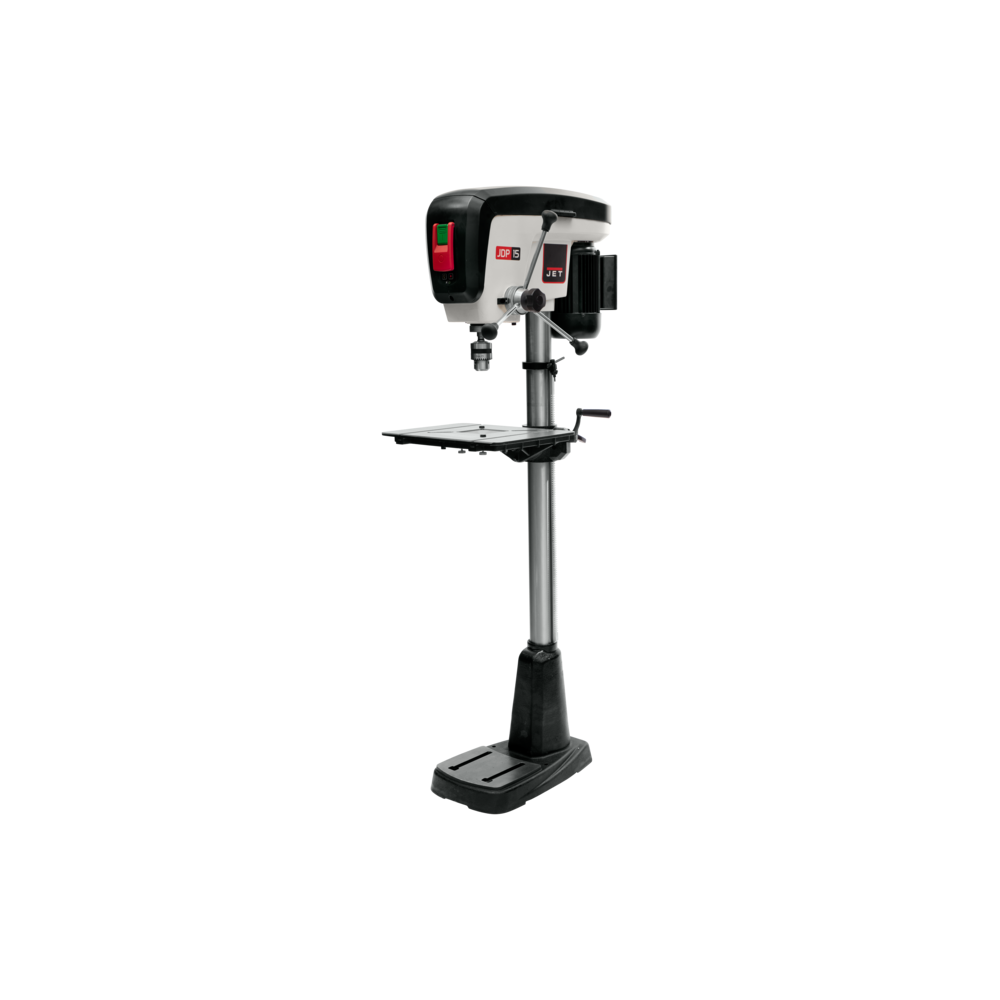

15" Floorstanding Drill Press
Features & Benefits
- Integrated depth stop makes repetitive drilling quick and easy
- Large cast iron base provides stability
- One-handed belt tensioning allows for rapid speed changes
- Power switch features a safety key and large, paddle-style off button
- Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system
- Replaceable MDF table insert
- Table edge lip designed to make clamping easy
- Xacta-X laser system easily identifies the drill center
| SAP EAN Number Code (UPC) |
731325424270 |
| Model Number |
JDP-15F |
| SAP Base Unit of Measure |
EA |
| SAP Commodity Code |
8465.95.0055 |
| SAP Country of Origin |
China |
| Warranty |
5 Year |
| SAP Delivery Plant |
JNA |
| SAP Length |
58 |
| SAP Unit of Dimension |
IN |
| SAP Height |
12.81 |
| SAP Unit of Dimension |
IN |
| SAP Width |
24.44 |
| SAP Unit of Dimension |
IN |
| SAP Gross Weight |
183 |
| SAP Weight Unit |
LBS |
| SAP Net weight |
172 |
| SAP Weight Unit |
LBS |
| SAP Transportation Group |
LTL |
| Assembled Machine Dimensions (L x W x H) (In.) (English United States, Ecommerce) |
27 x 17 x 63-1/4 |
| Chuck Size (In.) |
5/8 |
| Column Diameter (In.) |
2-3/4 |
| End User Sellable |
No |
| Item Display Order |
40.0000 |
| Motor Power (HP) |
3/4 |
| Motor Voltage (V.) |
115 |
| Number of Spindle Speeds |
16 |
| Prewired Voltage (V.) |
115 |
| Prop 65 |
Cancer and Reproductive Harm |
| Spindle Distance to Base (In.) |
46-1/2 |
| Spindle Distance to Table (Max.) (In.) |
30-1/2 |
| Spindle Travel (In.) |
3-1/8 |
| Style (Type) |
Floorstanding Model |
| Swing (In.) |
15 |
| Table Size (L x W) (In.) |
12-1/2 x 17 |
| Weight (Lbs.) |
172.0000 |
| Weight (Lbs.) (Unit) |
Pound |
|
