PM1900TX-BK3,3HP 3PH, W/30M BAG FLTR

PM1900TX-BK3,3HP 3PH, W/30M BAG FLTR

AB1792073K
$1,649.99

PM1900TX-BK3,3HP 3PH, W/30M BAG FLTR

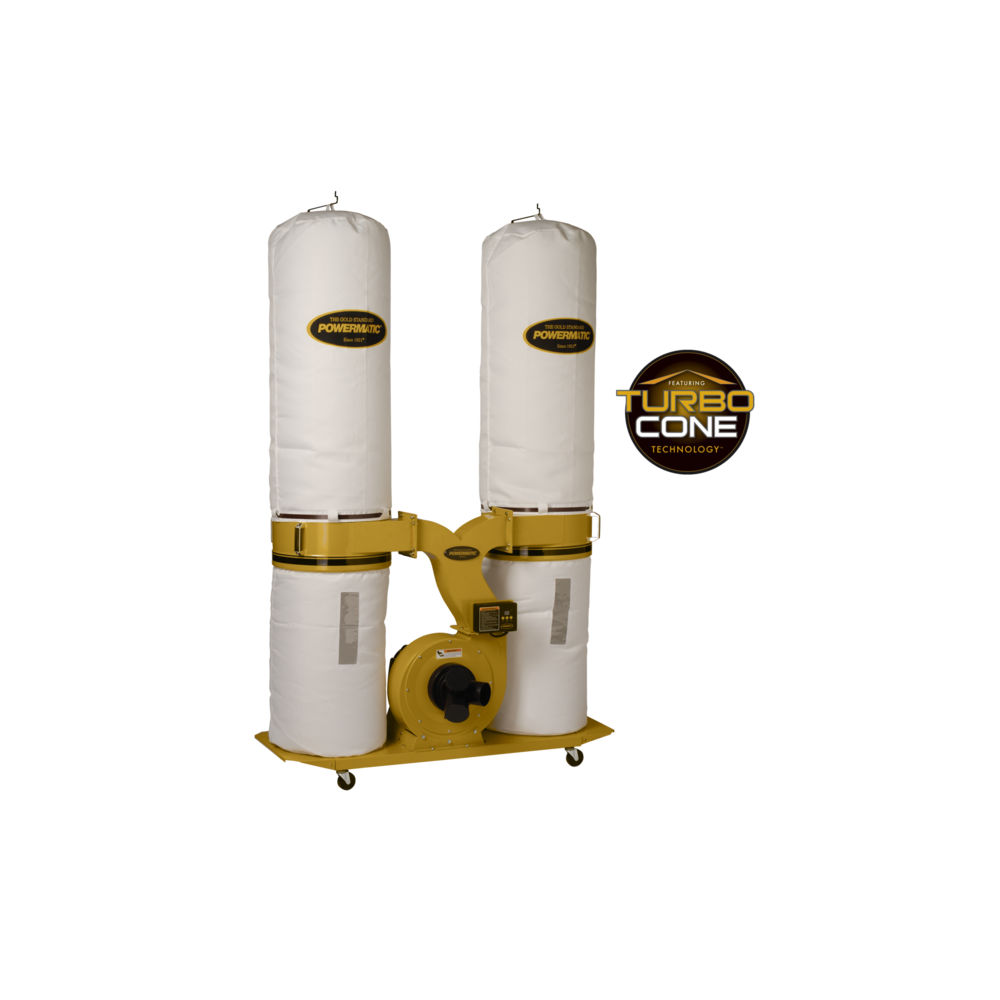

The PM1900 Dust Collector is strong enough to use with planers, wide belt sanders, table saws and most other woodworking machines. The exclusive TurboCone improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bags. The canister filter offers superior filtering surface area over standard bags, and captures 98% of 2-micron particles. The all-metal duct improves rigidity and air flow. The clear collector bags are large capacity, which means less down-time changing them. Four swivel casters and conveniently located handles allow for easy mobility.

PM1900TX-BK3 Dust Collector, 3HP 3PH 230/460V, 30-Micron Bag Filter Kit

Features & Benefits

  • 30-micron filter bags for improved capture of fine dust particles
  • All-metal duct construction for rigidity and improved air flow
  • Eliminates premature filter clogging for sustained performance
  • Cone eliminates premature filter clogging for sustained performance
  • The steel impeller is powered by a 3HP motor for peak performance
  • Triple 4 dust ports allow for several hoses to be attached at the same time
  • TurboCone improves chip separation and collector bag packing efficiency
SAP EAN Number Code (UPC) 731325175271
Model Number PM1900TX-BK3
SAP Base Unit of Measure EA
SAP Country of Origin Taiwan
Warranty 5 Year
SAP Delivery Plant JNA
SAP Length 46
SAP Unit of Dimension IN
SAP Height 28
SAP Unit of Dimension IN
SAP Width 23
SAP Unit of Dimension IN
SAP Gross Weight 215
SAP Weight Unit LBS
SAP Net weight 207
SAP Weight Unit LBS
SAP Transportation Group LTL
Accessories Products 1791075B,1791075F,1791086,1791087,JW1000,JW1007,JW1013,JW1015,JW1017,JW1019,JW1022,JW1031,JW1032,JW1034,JW1043,JW1047,JW1049,JW1142,JW1317
1-Hose Connection Diameter (In.) 8
3-Hoses Connection Diameter (In.) 4
Bag Diameter (In.) 20
Collection Bag Length (In.) 30
Efficiency (Micron) 30
End User Sellable No
Filter Bag/Canister Length (In.) 48
Impeller Diameter (In.) 14
Impeller Fins 7
Impeller Material Steel
Item Display Order 6.0000
Motor Phase 3
Motor Power (HP) 3
Prewired Voltage (V.) 230
Prop 65 Cancer and Reproductive Harm
Suggested Products 1791078K,1791079K,1792071K,1792072K,1792074K,1792200HK
AB1792073K

Data sheet

Package Type
BOX
Default Qty
1
