Are you ready to get more from your dust collector? The Cyclone Dust Collector Collection from JET delivers the efficiency youve been waiting for. With a direct mount filter, a radio frequency remote control and a large collection bin these dust collectors take your shops capabilities to a new level. Upgrade to a JET Cyclone Dust Collector and experience The Power of Efficiency.

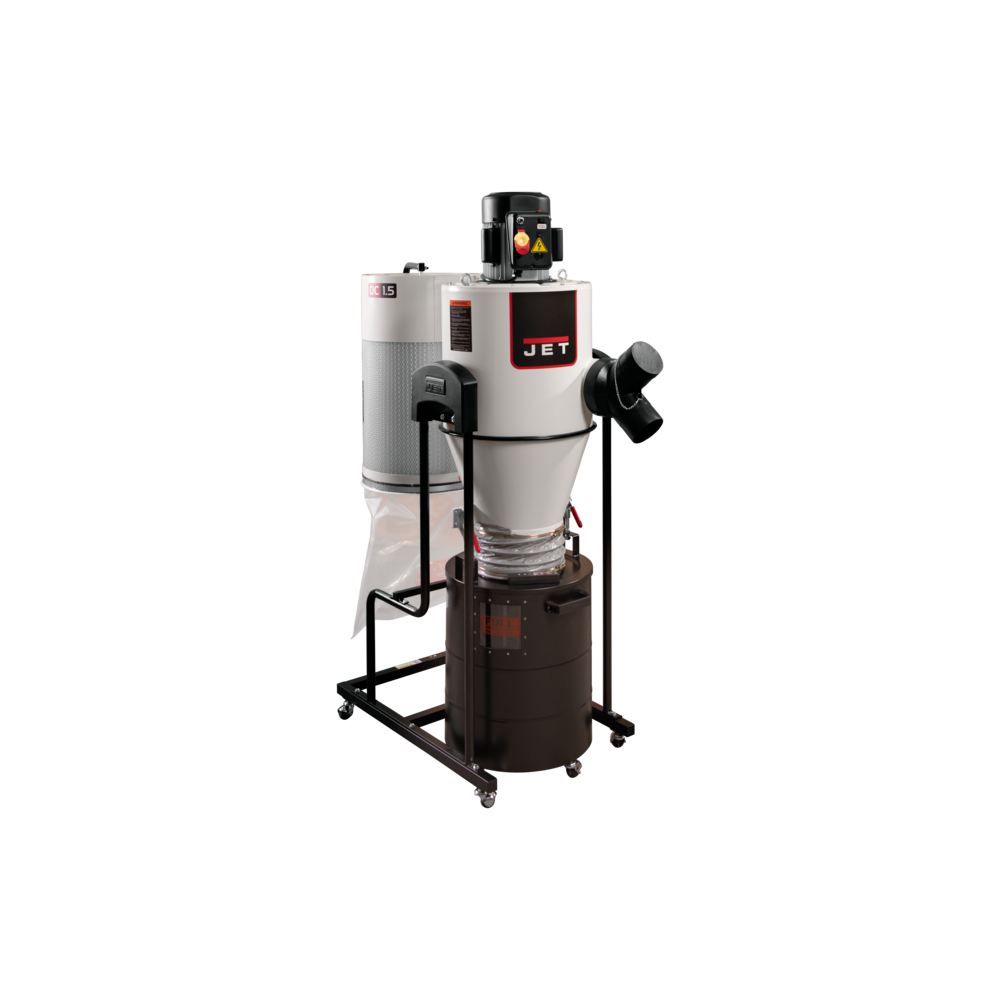

JCDC-1.5 Cyclone Dust Collector, 1.5HP, 115V
Features & Benefits
- Direct mounted filter eliminates inefficiencies from ridged flex hosing and bends
- Double paddle manual cleaning system quickly cleans the pleated filter
- Fine dust particles are filtered through pleated material that captures even the smallest particles down to 1 micron and below
- Heavy debris is captured in 20 gallon drum with quick release levers and independent casters for quick emptying
- Heavy debris is pulled down to collection drum before debris stream reaches the filter, providing constant suction
- Included radio frequency remote control works from up to 50 feet away
- Swivel casters make it easy to move the unit around the shop
- Cyclone's two stage separation provides more working CFM than comparable horsepower single stage units
| SAP EAN Number Code (UPC) |
731325424218 |
| Model Number |
JCDC-1.5 |
| SAP Base Unit of Measure |
EA |
| SAP Commodity Code |
8421.39.8015 |
| SAP Country of Origin |
Taiwan |
| Warranty |
5 Year |
| SAP Delivery Plant |
JNA |
| SAP Length |
43.75 |
| SAP Unit of Dimension |
IN |
| SAP Height |
33.5 |
| SAP Unit of Dimension |
IN |
| SAP Width |
23.25 |
| SAP Unit of Dimension |
IN |
| SAP Gross Weight |
175 |
| SAP Weight Unit |
LBS |
| SAP Net weight |
132 |
| SAP Weight Unit |
LBS |
| SAP Transportation Group |
LTL |
| Accessories Products |
717511,717516 |
| 1-Hose Connection Diameter (In.) |
6 |
| 2-Hoses Connection Diameter (In.) |
4 |
| Canister Filter Length (In.) |
15-3/4 |
| Collection Drum Capacity (gal.) |
20 |
| End User Sellable |
No |
| Filter Efficiency (Micron) |
1 |
| Footprint (L x W/In.) |
47 x 22 |
| Impeller Material |
Steel |
| Item Display Order |
4.0000 |
| Max. Static Pressure (Wc.) |
8.268 |
| MERV Value |
13 |
| Motor Amps |
14 |
| Motor Power (HP) |
1.5 |
| Motor Voltage (V.) |
115 |
| Prewired Voltage (V.) |
115 |
| Prop 65 |
Cancer and Reproductive Harm |
| Sound Rating (Db.) |
75 |
| Static Pressure Loss (EU Method) (Wc.) |
2.677 |
| Static Pressure Loss (US Method) (Wc.) |
1.535 |
|
