DC-1100VX-CK, 1.5HP 1PH, 2 MICRON CANST

DC-1100VX-CK, 1.5HP 1PH, 2 MICRON CANSTR

AB708659K
$999.99

DC-1100VX-CK, 1.5HP 1PH, 2 MICRON CANSTR

The JET DC-1100VX features the exclusive Vortex Cone which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have a snap ring for fast installation and removal. Casters offer maneuverability within the shop.

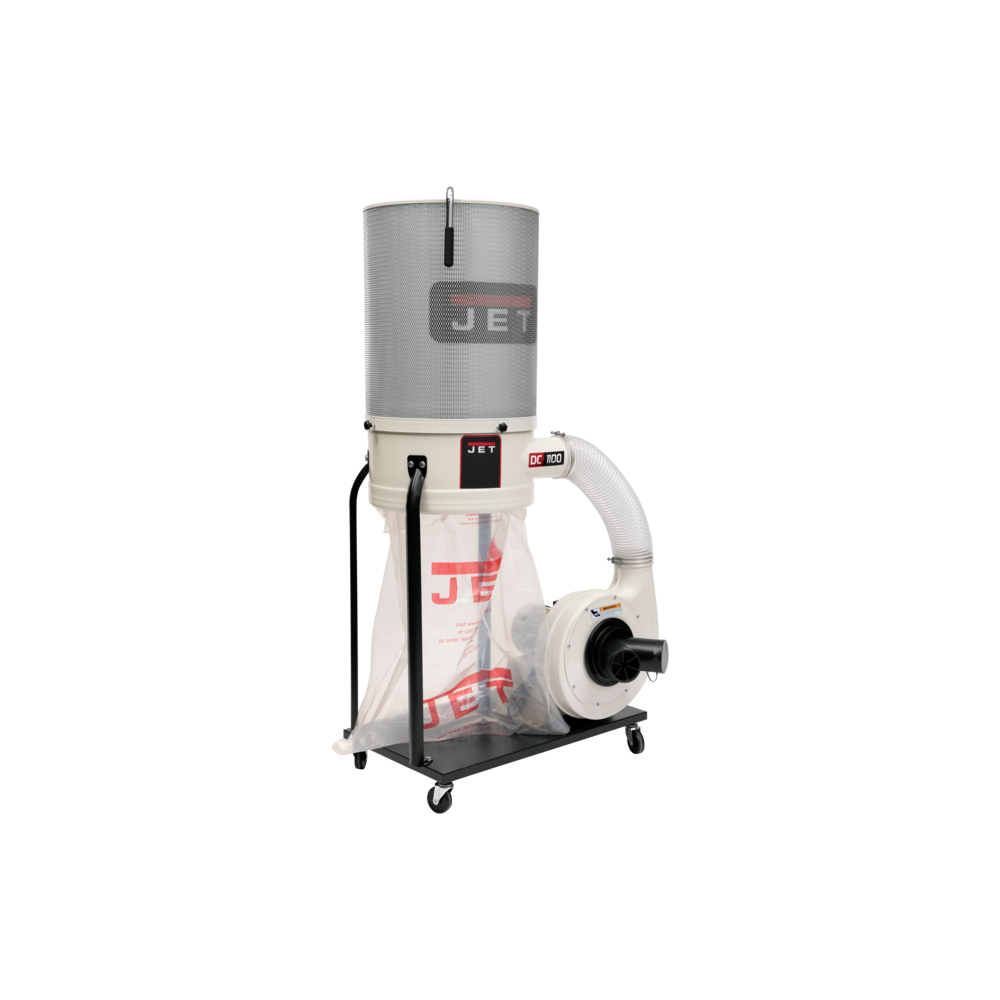

DC-1100VX-CK Dust Collector, 1.5HP 1PH 115/230V, 2-Micron Canister Kit

Features & Benefits

  • Eliminates premature filter clogging for sustained performance
  • High air velocity (CFM) design stands up to any competitive specifications
  • Includes four casters for maneuverability and total portability
  • Industrial controls designed for years of trouble-free use
  • Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
  • Quick-connect collection bags with elastic band for fast, easy installation and removal
  • Single-stage design for economical and quiet operation
  • Vortex Cone improves chip separation and collector bag packing efficiency
SAP EAN Number Code (UPC) 731325175318
Model Number DC-1100VX-CK
SAP Base Unit of Measure EA
SAP Country of Origin Taiwan
Warranty 5 Year
SAP Delivery Plant JNA
SAP Length 37
SAP Unit of Dimension IN
SAP Height 39
SAP Unit of Dimension IN
SAP Width 22.5
SAP Unit of Dimension IN
SAP Gross Weight 172
SAP Weight Unit LBS
SAP Net weight 159
SAP Weight Unit LBS
SAP Transportation Group LTL
Accessories Products 708636C,708636F,708636T,708639B,708698,708699A,709563,717600,717650
1-Hose Connection Diameter (In.) 6
2-Hoses Connection Diameter (In.) 4
Air Flow @ 4" (CFM) 1100
Bag Diameter (In.) 20
Collection Bag Capacity (Cu. Ft.) 5-3/10
Collection Bag Length (In.) 29
Efficiency (Micron) 2
End User Sellable No
Impeller Material Steel
Item Display Order 60.0000
Microsite URL http://www.jettools.com/us/en/view-series/vortex-cone/Vortex
Motor Amps 11/5.5
Motor Power (HP) 1-1/2
Prewired Voltage (V.) 115
Prop 65 Cancer and Reproductive Harm
Sound Rating (Db.) 70 - 80
Static Pressure (Wc.) 10-1/2
Style (Type) Canister
Velocity @ 4" (FPM) 12,571
AB708659K

Data sheet

Package Type
BOX
Default Qty
1
