DC-1200VX-CK1, 2HP 1PH, W/CANISTR FILTE

DC-1200VX-CK1, 2HP 1PH, W/CANISTR FILTER

AB710702K
$1,099.99

DC-1200VX-CK1, 2HP 1PH, W/CANISTR FILTER

The JET DC-1200VX features the exclusive Vortex Cone which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have a snap ring for fast installation and removal. Casters offer maneuverability within the shop.

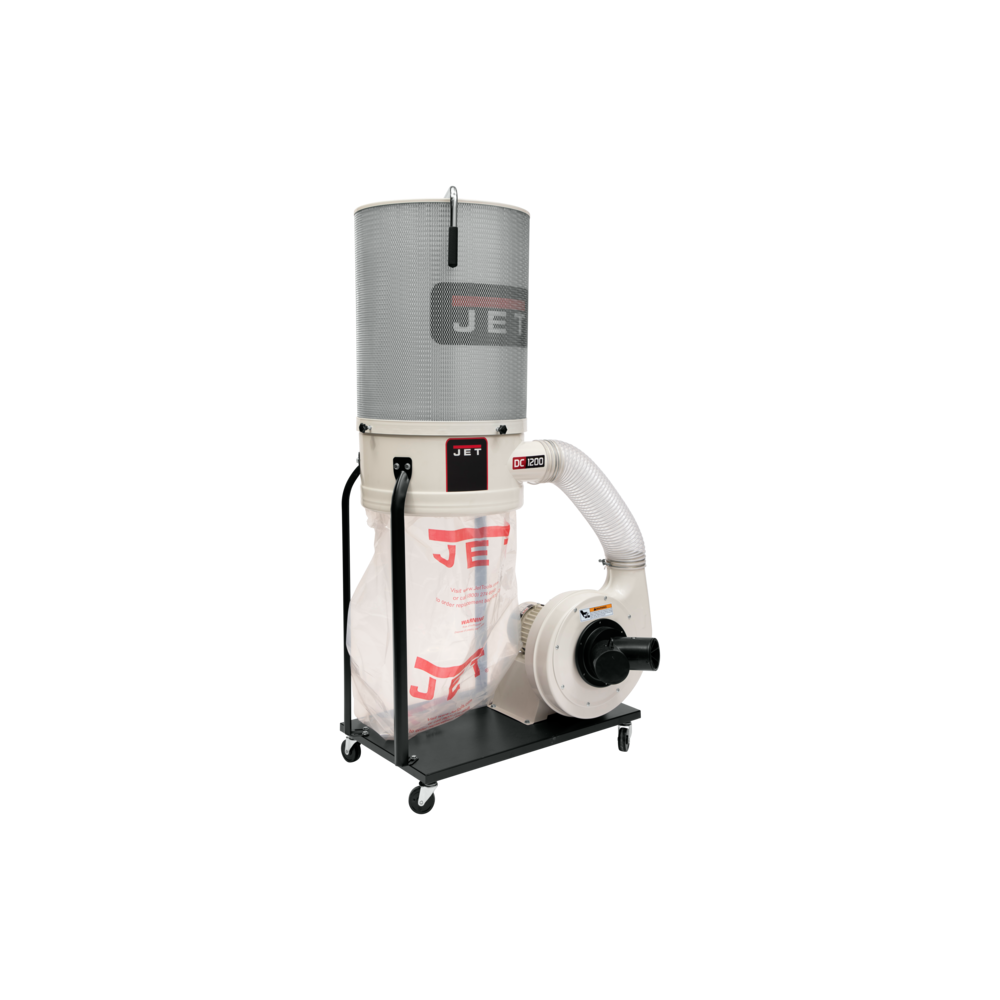

DC-1200VX-CK1 Dust Collector, 2HP 1PH 230V, 2-Micron Canister Kit

Features & Benefits

  • Eliminates premature filter clogging for sustained performance
  • High air velocity (CFM) design stands up to any competitive specifications
  • Includes four casters for maneuverability and total portability
  • Industrial controls designed for years of trouble-free use
  • Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
  • Quick-connect collection bags with elastic band for fast, easy installation and removal
  • Single-stage design for economical and quiet operation
  • Vortex Cone improves chip separation and collector bag packing efficiency
SAP EAN Number Code (UPC) 731325175349
Model Number DC-1200VX-CK1
SAP Base Unit of Measure EA
SAP Country of Origin Taiwan
Warranty 5 Year
SAP Delivery Plant JNA
SAP Length 37.5
SAP Unit of Dimension IN
SAP Height 39
SAP Unit of Dimension IN
SAP Width 22.5
SAP Unit of Dimension IN
SAP Gross Weight 183
SAP Weight Unit LBS
SAP Net weight 170
SAP Weight Unit LBS
SAP Transportation Group LTL
Accessories Products 708636D,708636F,708636MF,708636T,708639B,708698,708699A,709563,717600,717650
1-Hose Connection Diameter (In.) 6
2-Hoses Connection Diameter (In.) 4
Air Flow @ 4" (CFM) 1200
Bag Diameter (In.) 20
Collection Bag Capacity (Cu. Ft.) 5-3/10
Collection Bag Length (In.) 29
Efficiency (Micron) 2
End User Sellable No
Impeller Diameter (In.) 12
Impeller Material Steel
Item Display Order 80.0000
Microsite URL http://www.jettools.com/us/en/view-series/vortex-cone/Vortex
Motor Amps 8
Motor Power (HP) 2
Motor Voltage (V.) 230
Prewired Voltage (V.) 230
Prop 65 Cancer and Reproductive Harm
Sound Rating (Db.) 80 - 85
Static Pressure (Wc.) 11-1/2
Style (Type) Canister
AB710702K

Data sheet

Package Type
BOX
Default Qty
1
