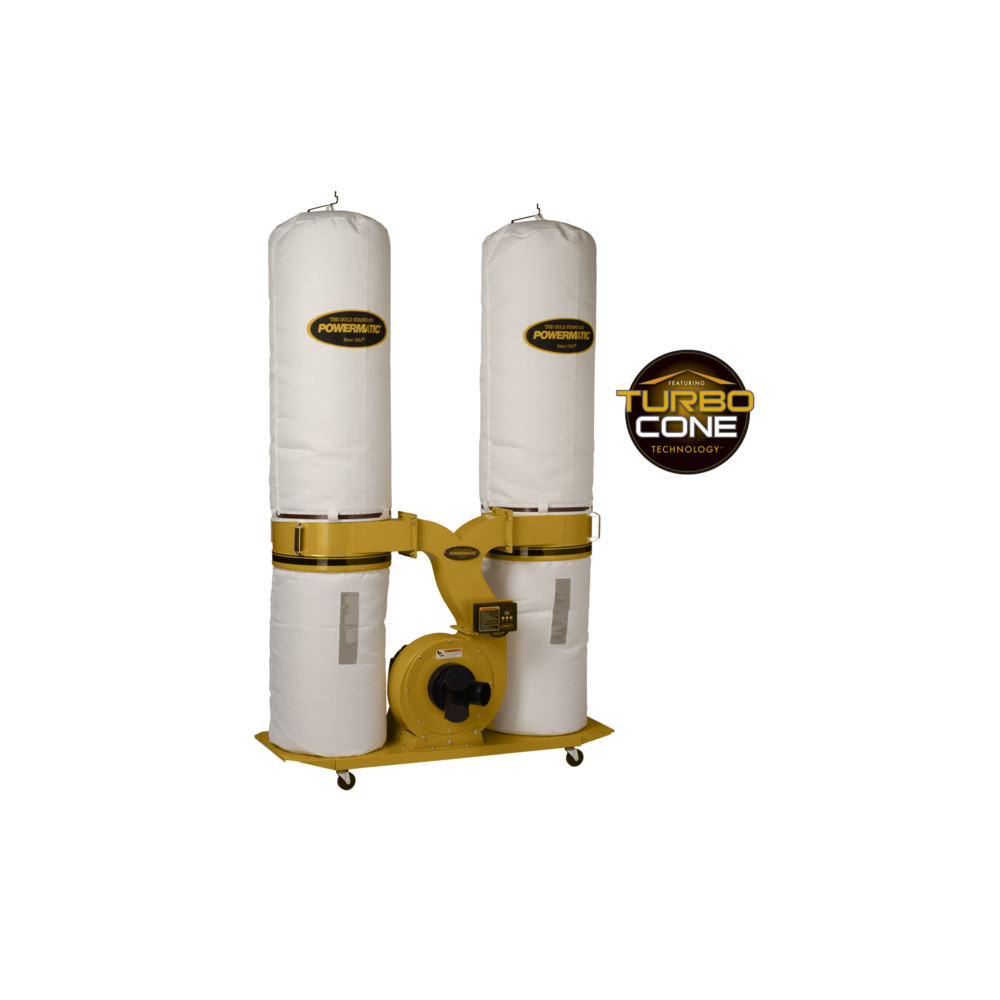

PM1900TX-BK1, 3HP 1PH, W/30M BAG FILTER

PM1900TX-BK1, 3HP 1PH, W/30M BAG FILTER

AB1792071K
$1,579.99

PM1900TX-BK1, 3HP 1PH, W/30M BAG FILTER

The PM1900 Dust Collector is strong enough to use with planers, wide belt sanders, table saws and most other woodworking machines. The exclusive TurboCone improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bags. The canister filter offers over six times the filtering area of standard filter bags, collects 98% of 2-micron particles. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. Multiple connection port capability makes this machine a central dust collection system for the entire woodworking shop. Four swivel casters and conveniently located handles allow for easy mobility.

PM1900TX-BK1 Dust Collector, 3HP 1PH 230V, 30-Micron Bag Filter Kit

Features & Benefits

  • 30-micron filter bags for improved capture of fine dust particles
  • All-metal duct construction for rigidity and improved air flow
  • Eliminates premature filter clogging for sustained performance
  • Remote-controlled digital timer can be programmed for up to 99 minutes
  • Cone eliminates premature filter clogging for sustained performance
  • The steel impeller is powered by a 3HP motor for peak performance
  • Triple 4 dust ports allow for several hoses to be attached at the same time
  • TurboCone improves chip separation and collector bag packing efficiency
SAP EAN Number Code (UPC) 731325175240
Model Number PM1900TX-BK1
SAP Base Unit of Measure EA
SAP Commodity Code 8421.39.8005
SAP Country of Origin Taiwan
Warranty 5 Year
SAP Delivery Plant JNA
SAP Length 46
SAP Unit of Dimension IN
SAP Height 28
SAP Unit of Dimension IN
SAP Width 23
SAP Unit of Dimension IN
SAP Gross Weight 215
SAP Weight Unit LBS
SAP Net weight 211
SAP Weight Unit LBS
SAP Transportation Group LTL
Accessories Products 1791075B,1791075F,1791086,1791087,JW1000,JW1007,JW1013,JW1015,JW1017,JW1019,JW1022,JW1031,JW1032,JW1034,JW1043,JW1047,JW1049,JW1142,JW1317
1-Hose Connection Diameter (In.) 8
3-Hoses Connection Diameter (In.) 4
Bag Diameter (In.) 20
Collection Bag Length (In.) 30
Efficiency (Micron) 30
End User Sellable No
Filter Bag/Canister Length (In.) 48
Impeller Diameter (In.) 14
Impeller Fins 7
Impeller Material Steel
Item Display Order 4.0000
Motor Phase 1
Motor Power (HP) 3
Prewired Voltage (V.) 230
Prop 65 Cancer and Reproductive Harm
Recommended Circuit Size (Amps.) 30
Suggested Products 1791078K,1791079K,1792072K,1792073K,1792074K,1792200HK
AB1792071K

Data sheet

Package Type
BOX
Default Qty
1
