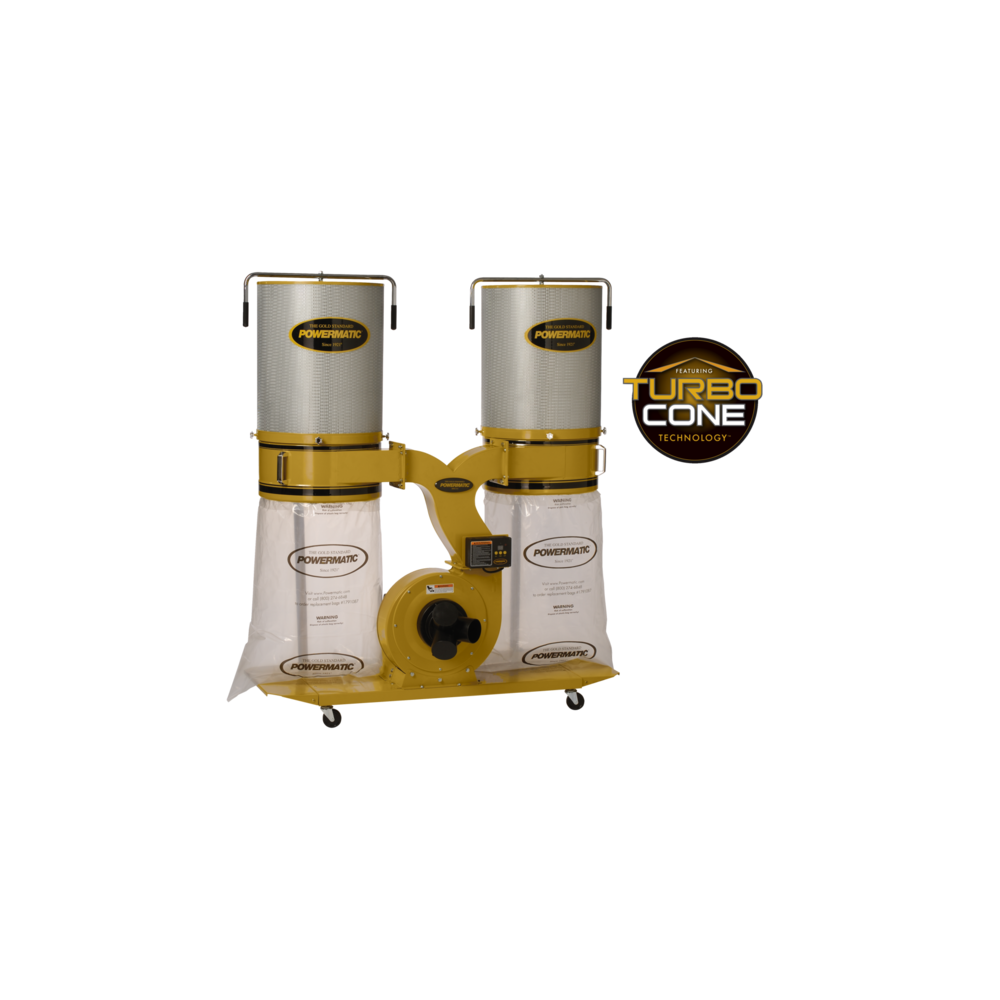

The PM1900 Dust Collector features the exclusive TurboCone which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The canister filter offers superior filtering surface area over standard bags, and captures 98% of 2-micron particles. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. The clear collector bags are large capacity, which means less down-time changing them. Four swivel casters and conveniently located handles allow for easy mobility.
PM1900TX-CK1 Dust Collector, 3HP 1PH 230V, 2-Micron Canister Kit
Features & Benefits
- 30-micron filter bags for improved capture of fine dust particles
- All-metal duct construction for rigidity and improved air flow
- Eliminates premature filter clogging for sustained performance
- Remote-controlled digital timer can be programmed for up to 99 minutes
- Cone eliminates premature filter clogging for sustained performance
- The steel impeller is powered by a 3HP motor for peak performance
- Triple 4 dust ports allow for several hoses to be attached at the same time
- TurboCone improves chip separation and collector bag packing efficiency
| SAP EAN Number Code (UPC) |
731325175257 |
| Model Number |
PM1900TX-CK1 |
| SAP Base Unit of Measure |
EA |
| SAP Commodity Code |
5911.90.0080 |
| SAP Country of Origin |
Taiwan |
| Warranty |
5 Year |
| SAP Delivery Plant |
JNA |
| SAP Length |
46 |
| SAP Unit of Dimension |
IN |
| SAP Height |
45 |
| SAP Unit of Dimension |
IN |
| SAP Width |
23 |
| SAP Unit of Dimension |
IN |
| SAP Gross Weight |
272 |
| SAP Weight Unit |
LBS |
| SAP Net weight |
268 |
| SAP Weight Unit |
LBS |
| SAP Transportation Group |
LTL |
| Accessories Products |
1791086,1791087,JW1000,JW1007,JW1013,JW1015,JW1017,JW1019,JW1022,JW1031,JW1032,JW1034,JW1043,JW1047,JW1049,JW1142,JW1317 |
| 1-Hose Connection Diameter (In.) |
8 |
| 3-Hoses Connection Diameter (In.) |
4 |
| Bag Diameter (In.) |
20 |
| Collection Bag Length (In.) |
30 |
| Efficiency (Micron) |
2 |
| End User Sellable |
No |
| Filter Bag/Canister Length (In.) |
26 |
| Impeller Diameter (In.) |
14 |
| Impeller Fins |
7 |
| Impeller Material |
Steel |
| Item Display Order |
5.0000 |
| Motor Phase |
1 |
| Motor Power (HP) |
3 |
| Prewired Voltage (V.) |
230 |
| Prop 65 |
Cancer and Reproductive Harm |
| Recommended Circuit Size (Amps.) |
30 |
| Suggested Products |
1791078K,1791079K,1792071K,1792073K,1792074K,1792200HK |
|
